Bucket Grapple

Hydraulic bucket grapple attachment for secure bulk material handling

Handling loose, bulky, or irregular material often leads to spillage and loss of control during transport. Standard buckets can struggle to contain waste, debris, or recyclables, especially when working across uneven ground or loading into trucks. A hydraulic bucket grapple attachment allows operators to clamp and secure material during movement, improving control across these tasks.

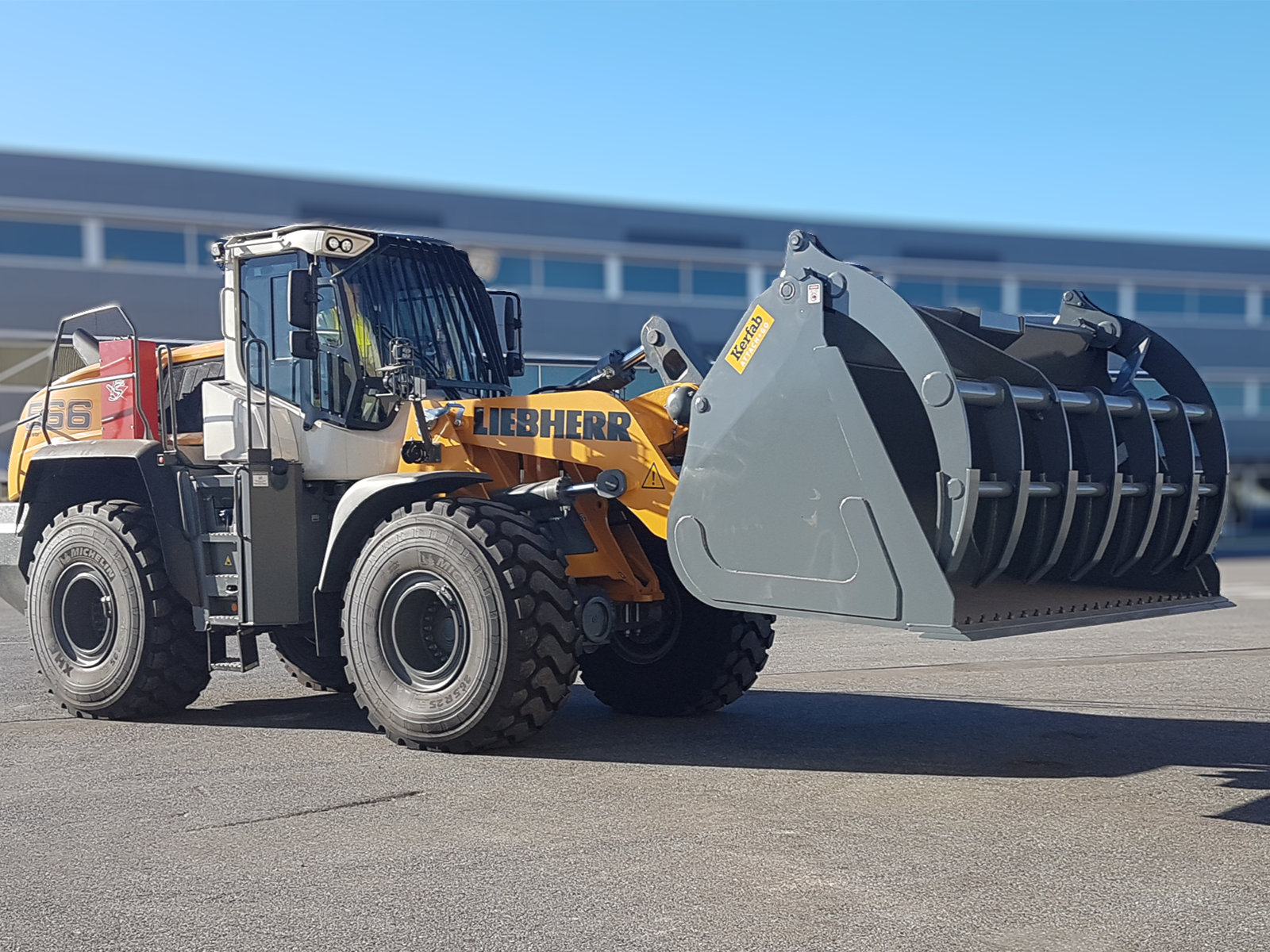

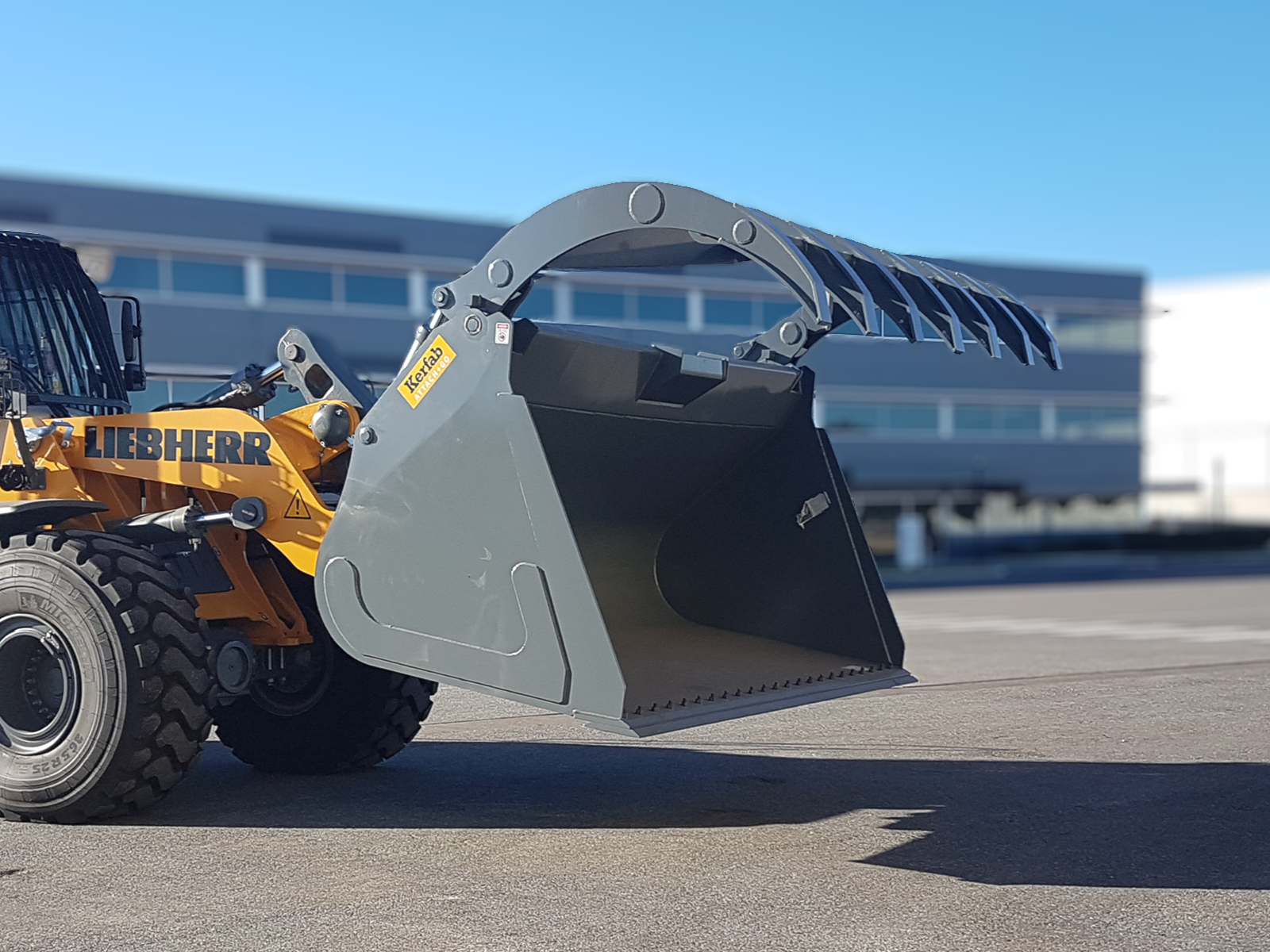

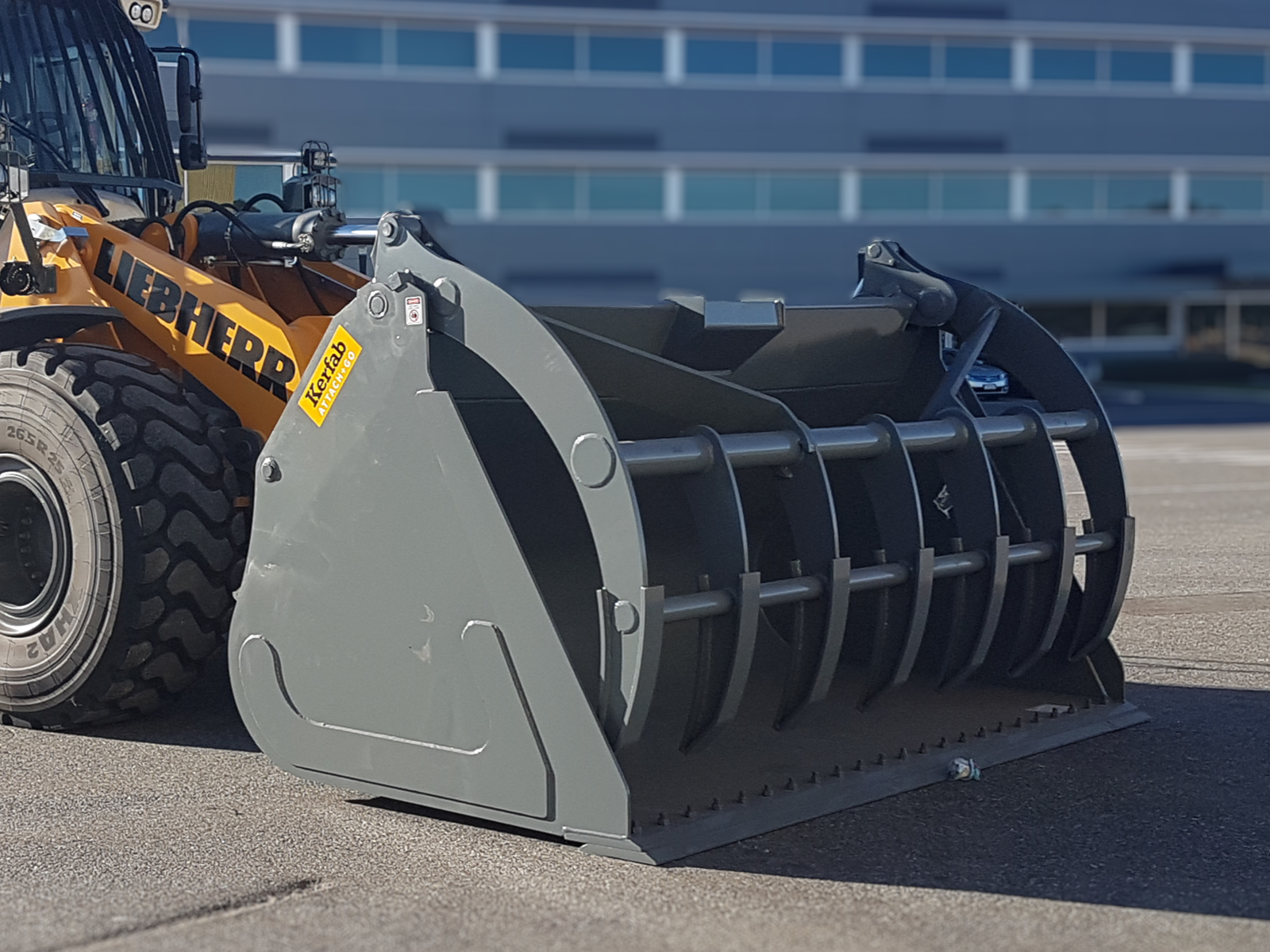

Kerfab Bucket Grapple combines a loader bucket with a hydraulically operated grapple, allowing material to be grabbed, contained, and transported in one motion. A semi-enclosed bucket profile helps reduce spillage, while the grapple arm holds material in place during lifting and travel.

With multiple width and capacity options and compatibility across common loader types, it supports efficient handling in waste, agricultural, and site clean-up environments.

Icon - Compatible
Hydraulically operated grapple for secure material clamping
icon bucket-svgrepo-com
Semi-enclosed bucket to reduce spillage during transport
construction-svgrepo-com (1)
Handles loose, bulky, and irregular materials
Icon - Adjustable
Available in widths from 2100 mm to 3000 mm
icon safety-supervision-svgrepo-com
Optional wear edges and grapple configurations
Icon - Warranty
Backed by a 2 year standard warranty + 2 year registered warranty

Designed for:

Waste and recycling handling
Site and yard clean-up
Handling green waste and debris
Loading bulky or irregular materials
Land clearing and general material movement

Machine Compatibility

Telehandler
Wheel Loader
Bespoke

When requesting a quote, include your machine make and model so the correct hitch configuration can be recommended.

Performance Benefits

Icon- ticks
Reduces material loss during transport
Loose material can spill during movement. The grapple and bucket profile work together to contain loads more effectively.
icon layers-svgrepo-com
Improves control over irregular loads
Bulky items such as logs or debris are harder to manage with a standard bucket. Clamping provides better hold and stability.
Icon - Maintainence
Supports efficient clean-up operations
Handling waste or mixed material becomes more controlled. This helps reduce rehandling and improves workflow.
icon tools-solid-svgrepo-com
Adapts to different applications
From agricultural clean-up to waste handling, the attachment suits multiple environments. This reduces the need for specialised tools.
Icon - Heavy-duty
Maintains performance in demanding conditions
Reinforced structure and wear components support repeated use. This is important in high-load or abrasive environments.

Engineering design

See it in 3D

Hydraulic grapple system

The grapple arm is hydraulically operated for controlled clamping. This allows material to be secured during lifting and transport.

Reinforced bucket structure

Rear stiffening and structural reinforcement support load distribution. This improves performance under heavier material loads.

Wear edge configuration

Fitted with a hardened cutting edge with bolt-on options. This supports digging and extends service life in abrasive conditions.

Pivot and bushing assembly

Grapple arms operate through pivot points and bushings. This maintains alignment and consistent clamping under load.

Specifications

Part Number
Width mm
Capacity m3
Machine Compatibility
TGW.HG2115
2100
1.5
Telehandler
TGW.HG2418
2400
1.8
Telehandler
TGW.HG2421
2400
2.1
Telehandler
TGW.WG2424
2400
2.4
Telehandler
WGW.IB2115
2100
1.5
Wheel Loader
WGW.IB2418
2400
1.8
Wheel Loader
WGW.IB2725
2700
2.5
Wheel Loader

Documents

Bucket Grapple

Product Information Sheet

Icon - Operation Manual
Operation Manual
Refer to the Identification Plate on your grapple for the specifications relevant to this attachment.

FAQ

What is a hydraulic bucket grapple attachment used for?
A hydraulic bucket grapple attachment is used to grab, hold, and transport loose or bulky materials. It is commonly used in waste handling, agriculture, and site clean-up where material needs to be contained during movement.
It is designed for loose, bulky, and irregular materials such as debris, recyclables, logs, and green waste. The grapple helps keep these materials secure during lifting and transport.
Yes. Different grapple types and tine configurations are available depending on the application. This allows the attachment to be matched to specific material handling requirements.

Get a Quote

Tell us your machine type, make and model, and the job the attachment will be used for.

Our team will confirm the correct configuration and provide a quote.

Most quotes are returned within one business day.




Our team will review your machine compatibility and respond with the correct attachment configuration and pricing.

Description

Handling loose, bulky, or irregular material often leads to spillage and loss of control during transport. Standard buckets can struggle to contain waste, debris, or recyclables, especially when working across uneven ground or loading into trucks. A hydraulic bucket grapple attachment allows operators to clamp and secure material during movement, improving control across these tasks.

Kerfab Bucket Grapple combines a loader bucket with a hydraulically operated grapple, allowing material to be grabbed, contained, and transported in one motion. A semi-enclosed bucket profile helps reduce spillage, while the grapple arm holds material in place during lifting and travel.

With multiple width and capacity options and compatibility across common loader types, it supports efficient handling in waste, agricultural, and site clean-up environments.
