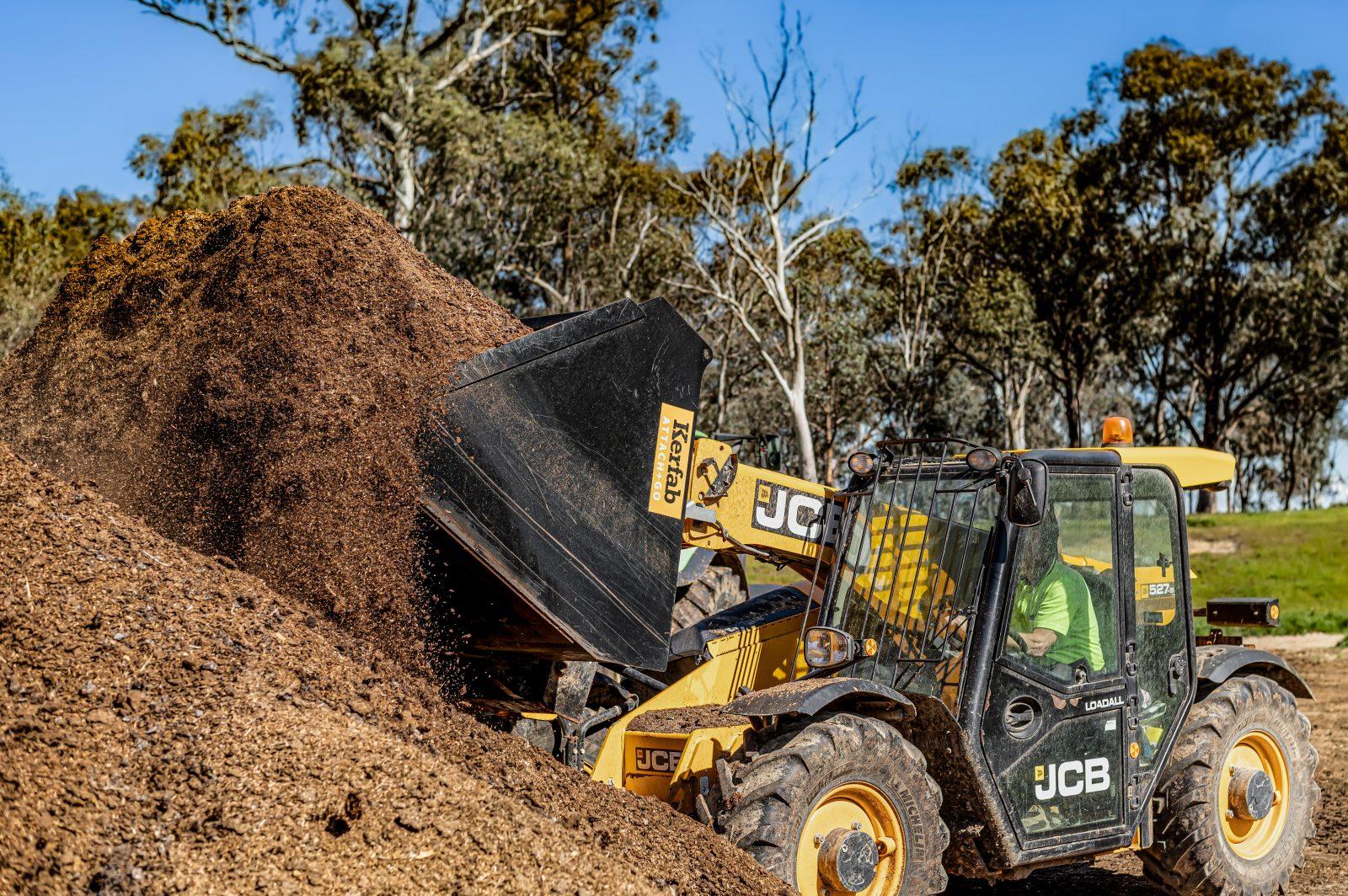

Telehandler Light Materials Bucket

Telehandler light material bucket for high-volume material handling

Moving large volumes of light material is less about breakout force and more about capacity, flow, and minimising spillage during transport. Materials like grain and sawdust can build up inside the bucket or spill over the edge if the profile isn’t suited to the task. A telehandler light material bucket allows operators to carry more volume per cycle while keeping material contained and easy to discharge.

The Kerfab Telehandler Light Materials Bucket uses a rolled internal surface to help material flow out smoothly, reducing clean-out time between loads. An extended curved front helps minimise spillage while travelling, and the large capacity design supports high-volume handling across agricultural operations. Manufactured from high strength steel and fitted with a hardened wear edge, it provides consistent performance during daily use.

icon bucket-svgrepo-com
Designed for materials up to 800 kg/m³
icon weight-svgrepo-com
Capacities available up to 4.0 m³
Icon - Heavy-duty
Manufactured from high strength GR350 steel
noun-concave-359170
Rolled internal surface for smooth clean-out
icon shipping-fast-svgrepo-com
Despatch within 7 working days of order confirmation
Icon - Warranty
Backed by a 2 year standard warranty + 2 year registered warranty

Designed for:

Handling grain and sawdust
Moving low-density bulk materials
Agricultural material transport
Loading and unloading storage areas
High-volume material handling tasks

Machine Compatibility

Telehandler
Bespoke

When requesting a quote, include your machine make and model so the correct hitch configuration can be recommended.

Performance Benefits

icon layers-svgrepo-com
Moves more material per cycle
Large bucket capacity allows operators to carry higher volumes of low-density material. This reduces the number of trips required.
Icon- ticks
Cleaner discharge during unloading
Material flows more freely due to the rolled internal surface. This makes emptying the bucket faster and reduces leftover build-up.
plus-svgrepo-com
Reduced spillage during transport
The curved front section helps contain material while moving. This is especially useful when handling lighter materials that shift easily.
icon gear-wheel-svgrepo-com
Built for consistent daily use
High strength steel construction supports repeated loading and unloading. The bucket maintains performance across regular operation.
noun-adaptive-7110686
Adaptable to changing conditions
Optional wear edges can be added when more durability or breakout performance is needed. This allows the bucket to be adjusted to suit different tasks.

Engineering design

See it in 3D

GR350 steel construction

Manufactured from high strength GR350 steel. This supports durability while maintaining structural integrity.

Rolled internal surface

The internal surface is rolled to improve material flow. This helps reduce build-up inside the bucket.

Extended curved front

The front section is extended and curved. This helps minimise material spillage during loading and transport.

Wear edge options

Fitted with a hardened wear edge as standard. Optional bolt-on double wear edges are available for added protection and breakout force.

Specifications

Part Number
Width mm
Capacity m3
TBU.LM2113
2100
1.3
TBU.LM2415
2400
1.5
TBU.LM2420
2400
2.0
TBU.LM2425
2400
2.5
TBU.LM2430
2400
3.0
TBU.LM2735
2700
3.5
TBU.LM3040
3000
4

See it in action

Play Video

Documents

Telehandler Light Materials Bucket

Product Information Sheet

FAQ

What is a telehandler light material bucket used for?
A telehandler light material bucket is used for handling low-density materials such as grain and sawdust. It is designed to maximise volume and efficiency when moving large quantities of material.
The bucket is designed for materials up to 800 kg/m³. This includes common agricultural materials like grain, sawdust, and similar low-density products.
The bucket is available in a range of sizes with capacities up to 4.0 m³. Different width and capacity combinations allow the bucket to be matched to your machine and application.

Get a Quote

Tell us your machine type, make and model, and the job the attachment will be used for.

Our team will confirm the correct configuration and provide a quote.

Most quotes are returned within one business day.




Our team will review your machine compatibility and respond with the correct attachment configuration and pricing.

Description

Moving large volumes of light material is less about breakout force and more about capacity, flow, and minimising spillage during transport. Materials like grain and sawdust can build up inside the bucket or spill over the edge if the profile isn’t suited to the task. A telehandler light material bucket allows operators to carry more volume per cycle while keeping material contained and easy to discharge.

The Kerfab Telehandler Light Materials Bucket uses a rolled internal surface to help material flow out smoothly, reducing clean-out time between loads. An extended curved front helps minimise spillage while travelling, and the large capacity design supports high-volume handling across agricultural operations. Manufactured from high strength steel and fitted with a hardened wear edge, it provides consistent performance during daily use.
