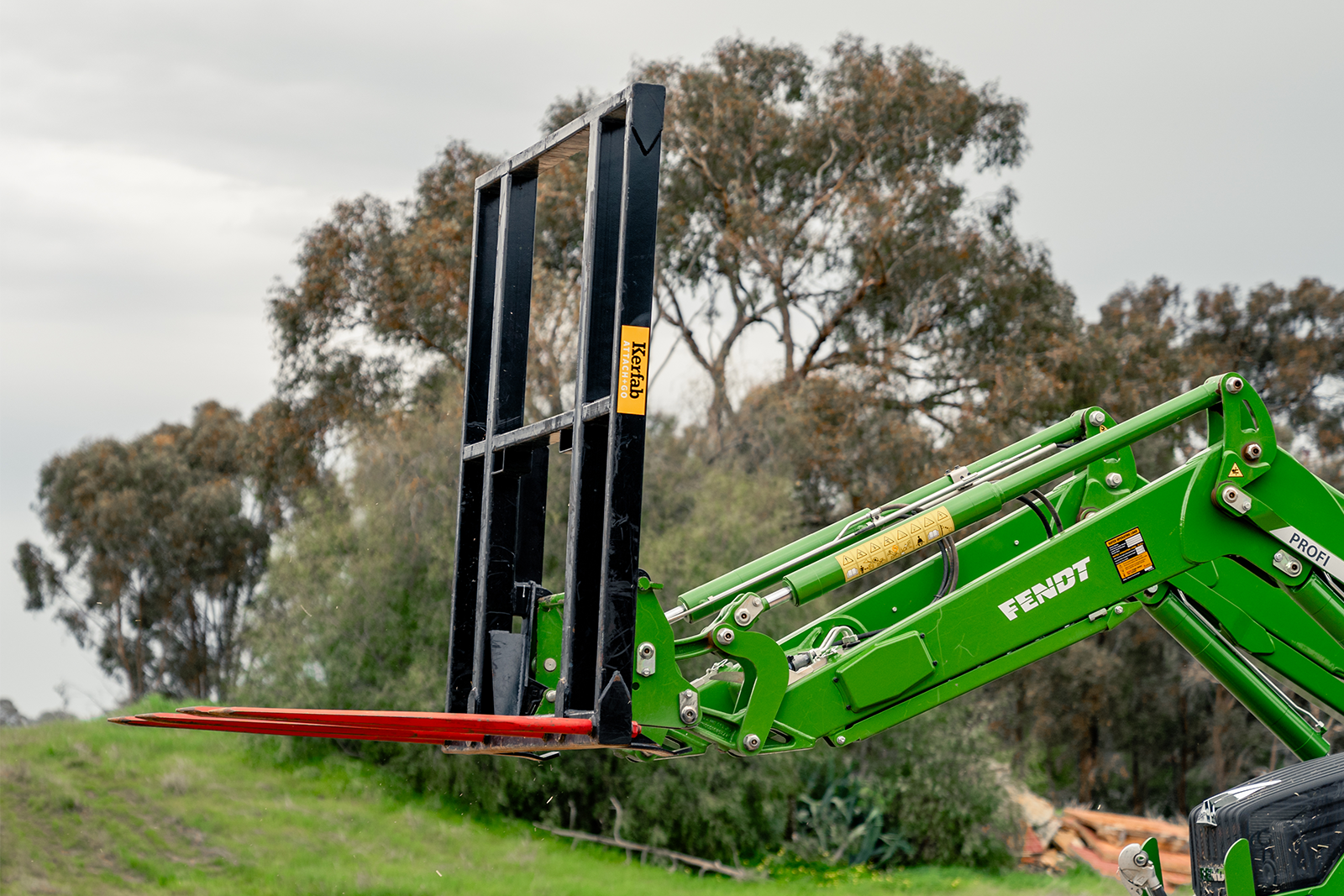

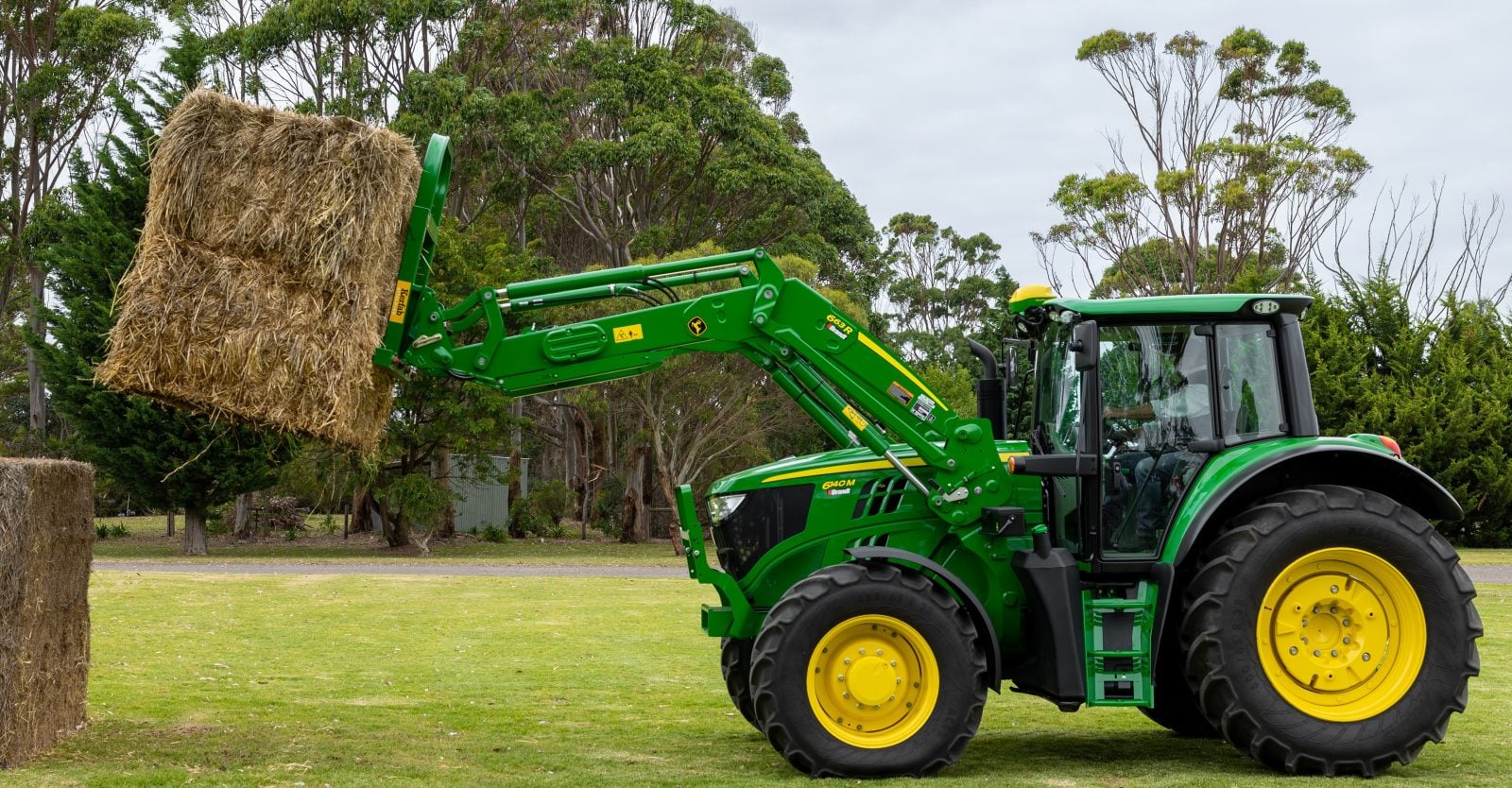

Tractor Bale Fork

Tractor Bale Fork

Kerfab 7 Day Lead Time Badge

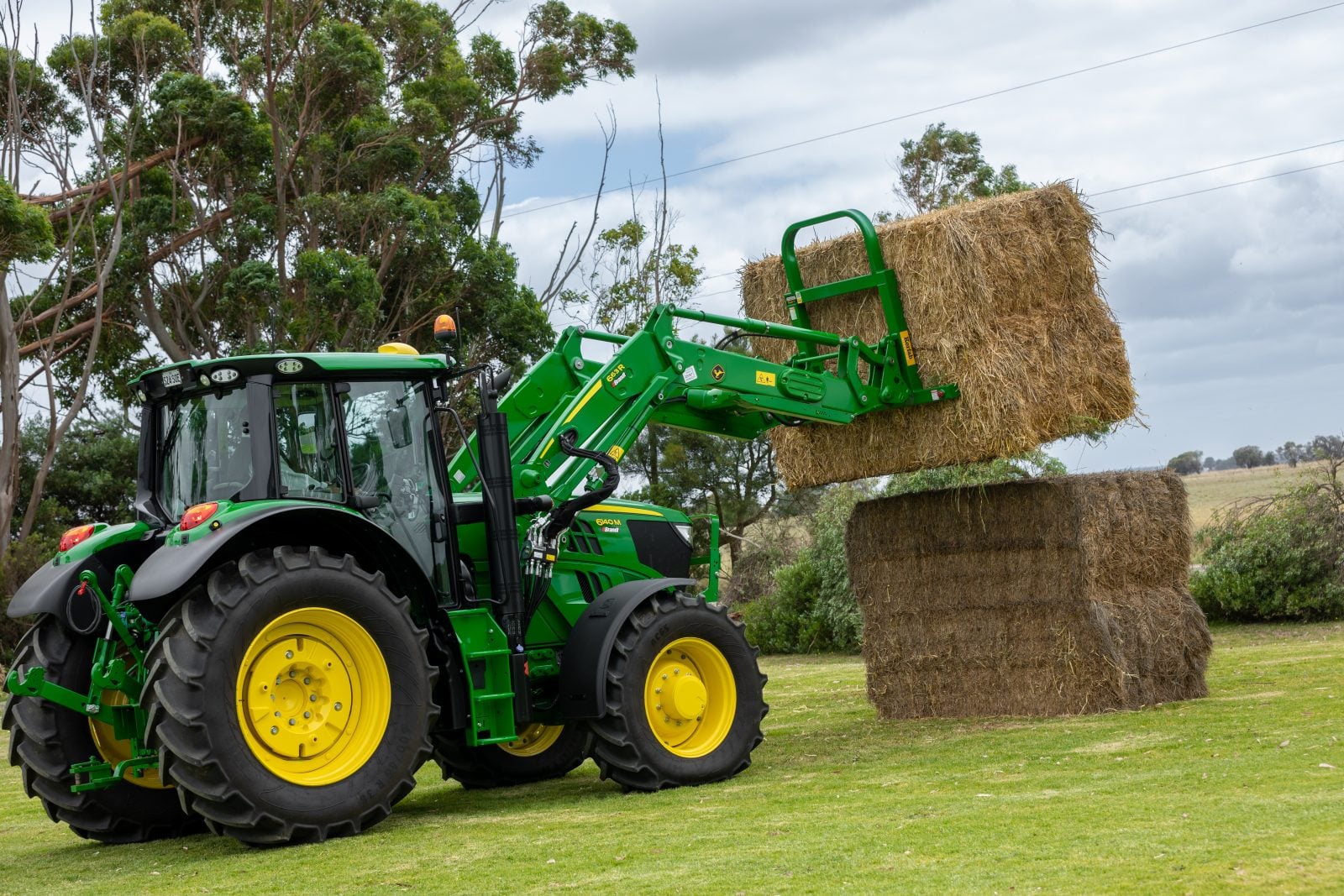

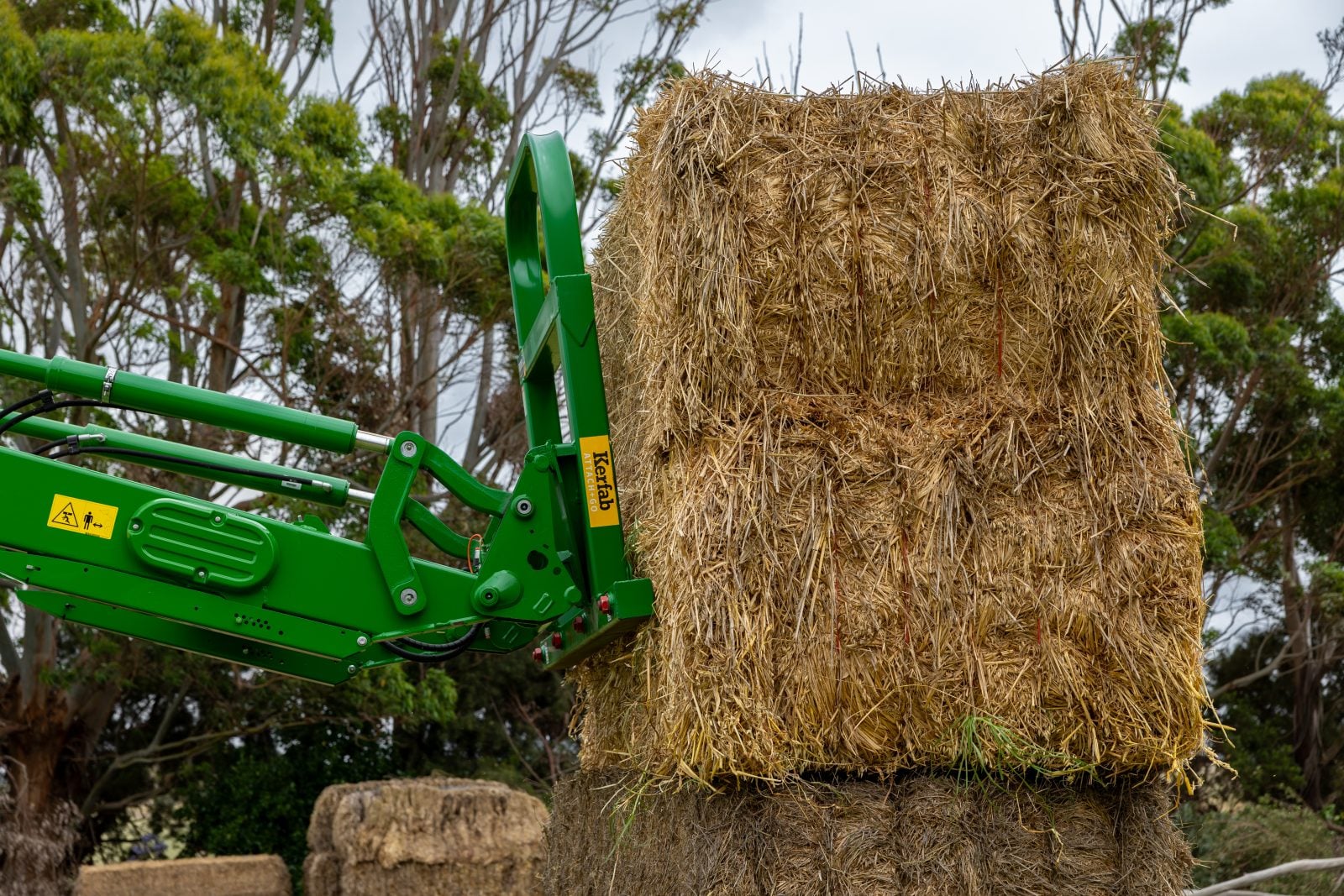

Handling hay bales shouldn’t be a time-consuming and dangerous task. You need a hay fork that simply works and perfectly fits every time. Kerfab’s Tractor Bale Fork is designed to safely handle individual or multiple bales both round and square.

The fork frame has been engineered to maximise the visibility of the tine ends and surrounding areas from inside the cab. This, combined with its durability and strength, sets it apart from other hay forks on the market.

We manufacture two styles of tractor bale forks. Built from the same high-quality steel, both the Standard Square Hay Fork and the Larger Hay Fork are built to last on Aussie farms. Unique to Kerfab, our standard style has a curved steel top frame enabling you to carry larger and multiple bales with increased stability and safety.

Maximise your capacity with an extendable back frame. Adjustable back frames are available on both styles, with manual or hydraulic options. The Large Hay Fork can extend up to 2.7 meters, allowing you to comfortably handle up to 4 bales simultaneously.

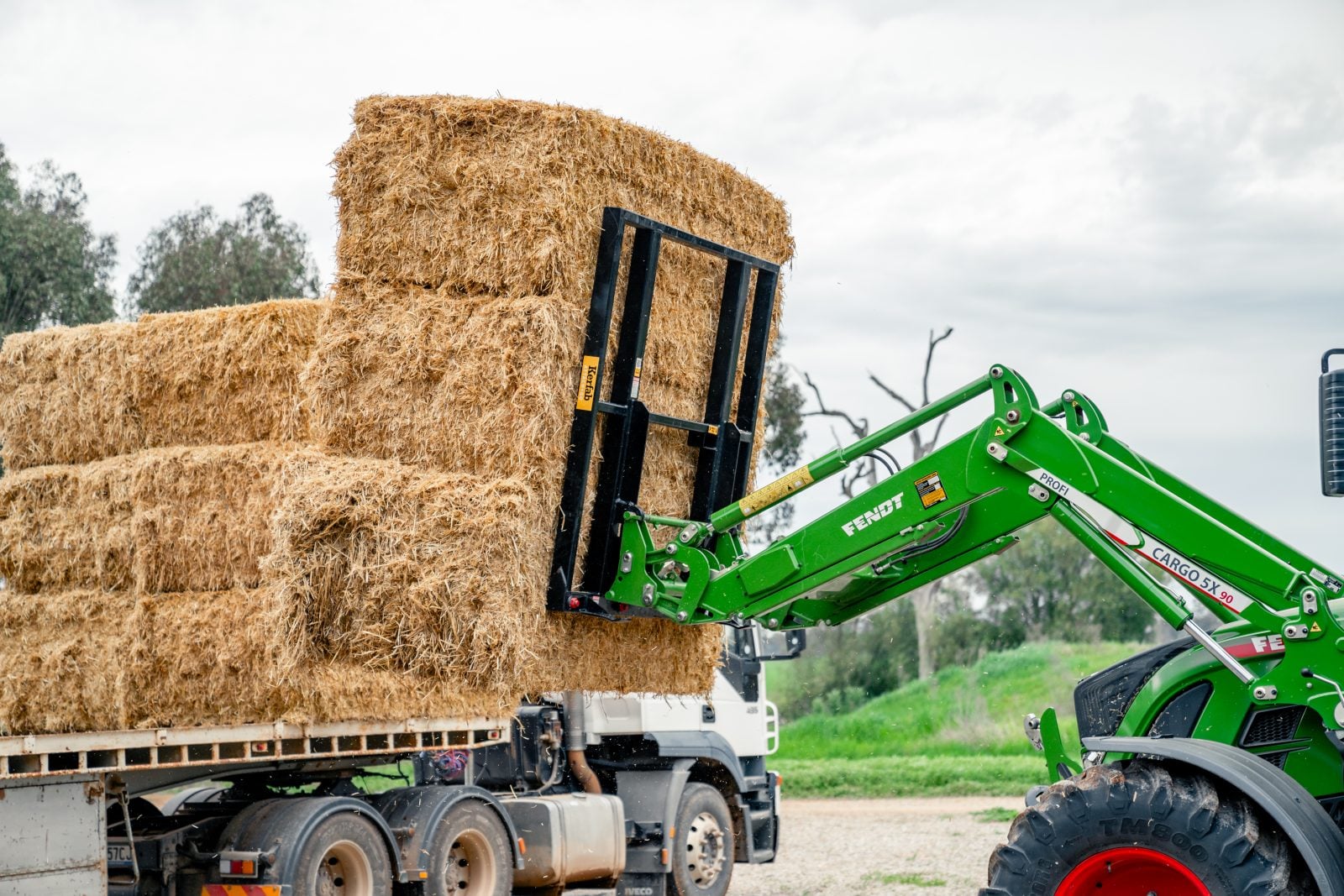

With a Kerfab Tractor Bale Fork, you’ll be able to stack, transport, load and lift hay bales with ease. Contact the team today for more information or custom solutions.

Tractor Bale Fork Attach + Go Guarantee

As part of our Attach+Go Range, your Tractor Bale Fork will be dispatched within 7 days from the date of order confirmation. Also included is free shipping and a quick quote turnaround of 2 hours.

We’re putting an end to attachments slowing down your operations, with a streamlined order process, so you can get back to doing what you do best, faster

Read more

Handling hay bales shouldn’t be a time-consuming and dangerous task. You need a hay fork that simply works and perfectly fits every time. Kerfab’s Tractor Bale Fork is designed to safely handle individual or multiple bales both round and square.

The fork frame has been engineered to maximise the visibility of the tine ends and surrounding areas from inside the cab. This, combined with its durability and strength, sets it apart from other hay forks on the market.

We manufacture two styles of tractor bale forks. Built from the same high-quality steel, both the Standard Square Hay Fork and the Larger Hay Fork are built to last on Aussie farms. Unique to Kerfab, our standard style has a curved steel top frame enabling you to carry larger and multiple bales with increased stability and safety.

Maximise your capacity with an extendable back frame. Adjustable back frames are available on both styles, with manual or hydraulic options. The Large Hay Fork can extend up to 2.7 meters, allowing you to comfortably handle up to 4 bales simultaneously.

With a Kerfab Tractor Bale Fork, you’ll be able to stack, transport, load and lift hay bales with ease. Contact the team today for more information or custom solutions.

Tractor Bale Fork Attach + Go Guarantee

As part of our Attach+Go Range, your Tractor Bale Fork will be dispatched within 7 days from the date of order confirmation. Also included is free shipping and a quick quote turnaround of 2 hours.

We’re putting an end to attachments slowing down your operations, with a streamlined order process, so you can get back to doing what you do best, faster

icon shipping-fast-svgrepo-com
7 Day Lead Time
icon tools-solid-svgrepo-com
Two styles available
change-svgrepo-com
Various Tine Configurations

Benefits of Tractor Bale Fork

icon weight-svgrepo-com
Quality Build
Two front gussets made from Grade 250 steel are fabricated onto the middle frame further strengthening the hay fork allowing you to handle heavier bales.
icon steel-claws-svgrepo-com
Conus 2 tines
Come standard with 1250mm long Conus 2 tines, allowing you to pick up dense bales without bending them.
icon mechanics-kinematics-inverse-robots-svgrepo-com
Fits most hitches
Can be fitted with most hitches to suit your tractor make and model.
icon warranty-term-svgrepo-com
2 Year Warranty
Both styles of our Tractor Hay Forks come with a 2 year manufacturer’s warranty

Watch a video

Tractor Bale Fork

Play Video

Container below this one is for inserting additional product panels - it will be hidden if no product panel is selected for the product in question

1
2
3

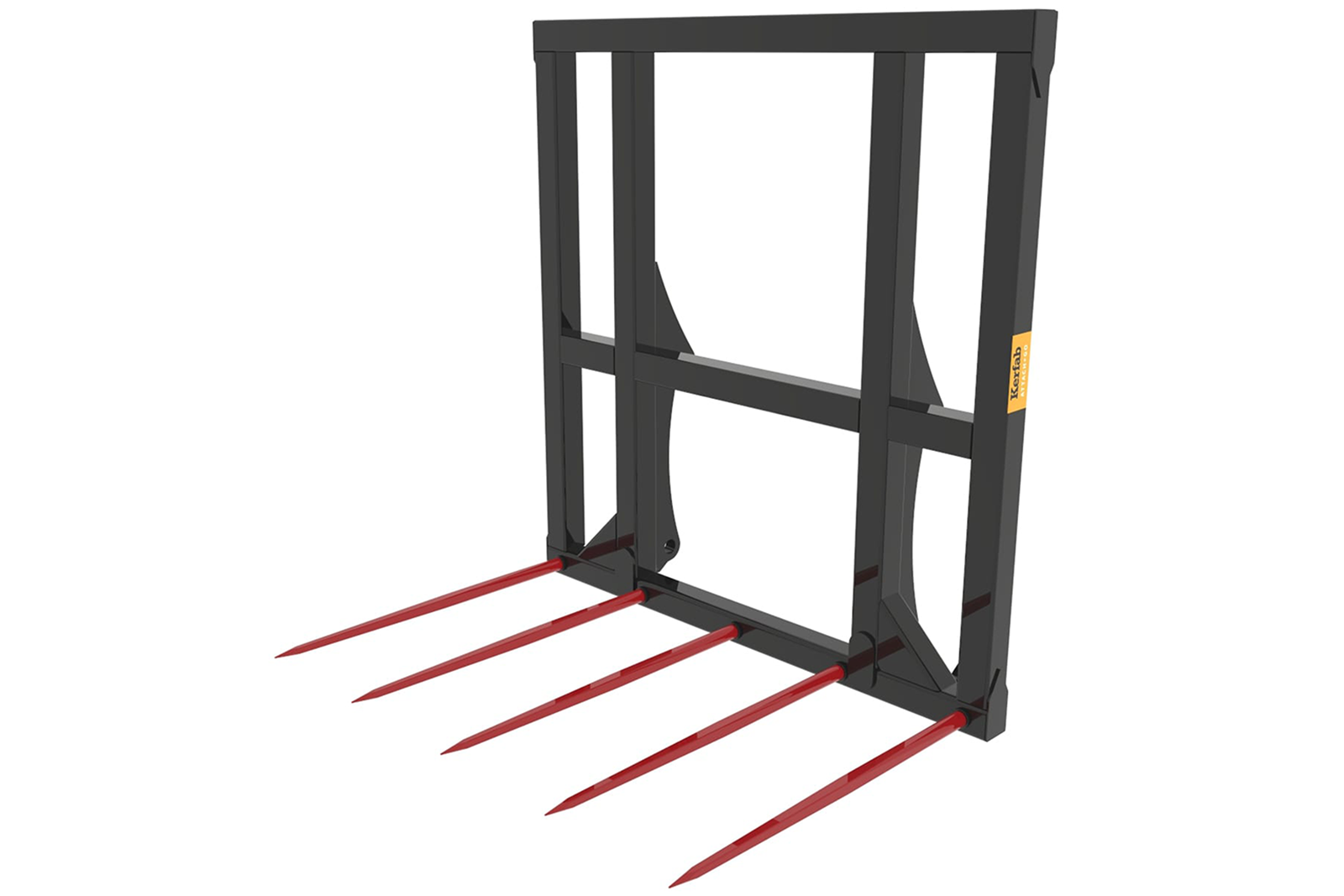

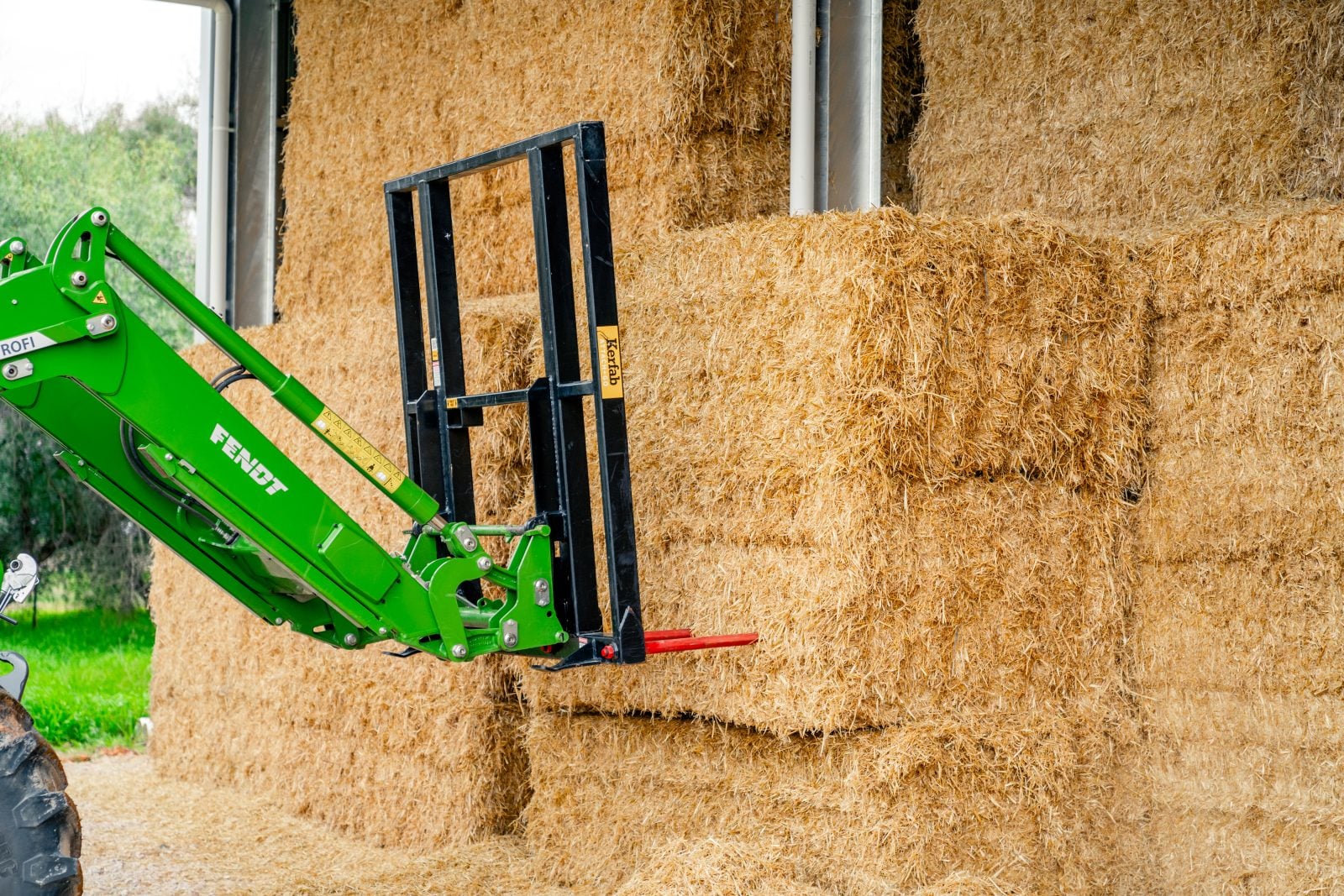

Standard Square Hay Fork

Various tine configurations

Available with 3, 4 or 5 tines based and size the weight of your hay bales.

Its curved steel top frame allows for greater stability when picking up and moving multiple bales.

Optional 900mm adjustable back frame can be fitted to increase loading capacity, enabling transportation of up to three bales at a time.

1
2
3
4

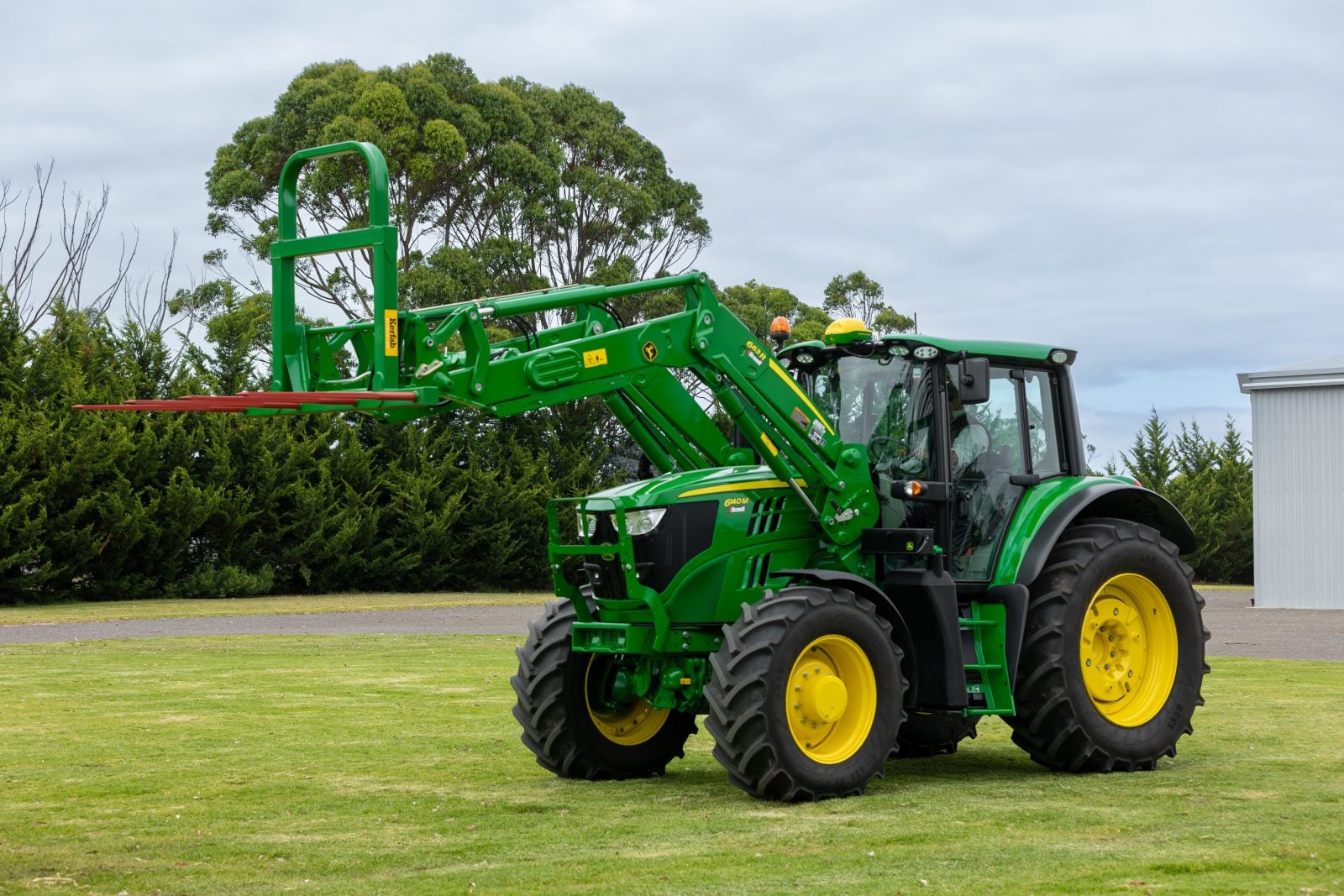

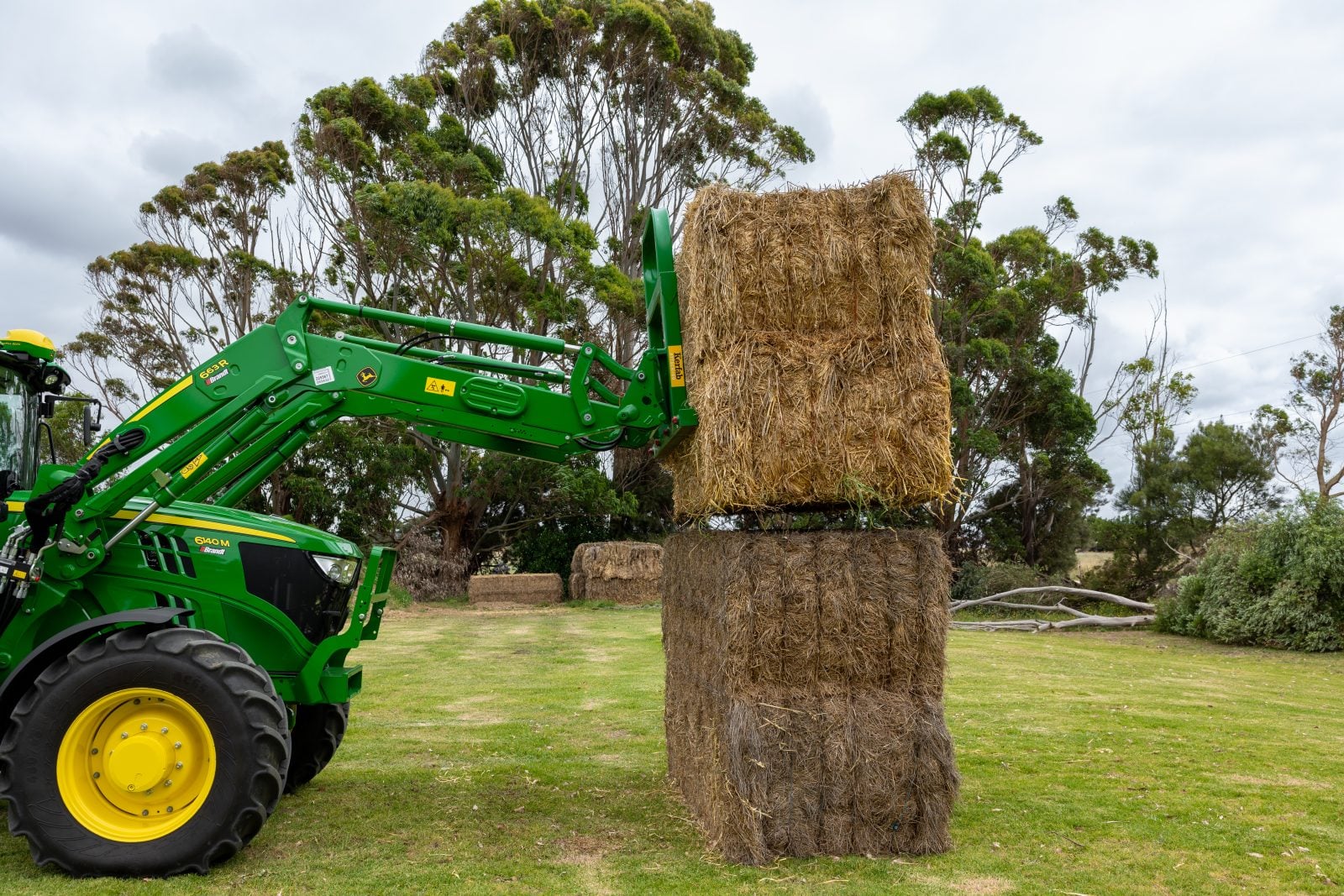

Large Square Hay Fork

For larger machines

Best suited to larger ag loaders and tractors as it has a greater capacity than the standard size and can carry up to two extra bales.

The adjustable back frame is available in a range of heights from 1.5m – 2.4m or 1.8m – 2.7m and has both manual and hydraulic adjustment options.

Depending on your application additional tines can be added to the top frame for extra security. As standard it can be fitted with 3, 4 or 5 tines across the bottom.

The 4-9mm thick steel frame won’t warp and twist when you lift a full load.

View this product in 3D

Specifications

Part No
Width mm
Height mm
Weight kg
Number of Tines
Number of Bushes
Machine Size
UHF.SQ4T15
1830
1500
143
4
4
35-200hp
UHF.SQ5T15
1830
1500
159
5
5
35-200hp
Part No
Width mm
Height mm
Weight kg
Number of Tines
Number of Bushes
Machine Size
UHF.ST4T18EURO
1800
1800
320
4
4
125-200hp
UHF.ST5T18EURO
1800
1800
330
5
5
125-200hp

Documents

icon invoice-warranty-line-svgrepo-com
Standard Tractor Hay Fork Manual
Refer to the Identification Plate on the Forks for the specifications relevant to this attachment.
icon invoice-warranty-line-svgrepo-com
Large Square Hay Fork Manual
Refer to the Identification Plate on the Forks for the specifications relevant to this attachment.
icon open-book-svgrepo-com
Kerfab Bale Fork Guide
Overview of our range of hay fork specifications and capabilities.
