Telehandler Bale Fork

Telehandler Bale Fork

Kerfab 7 Day Lead Time Badge

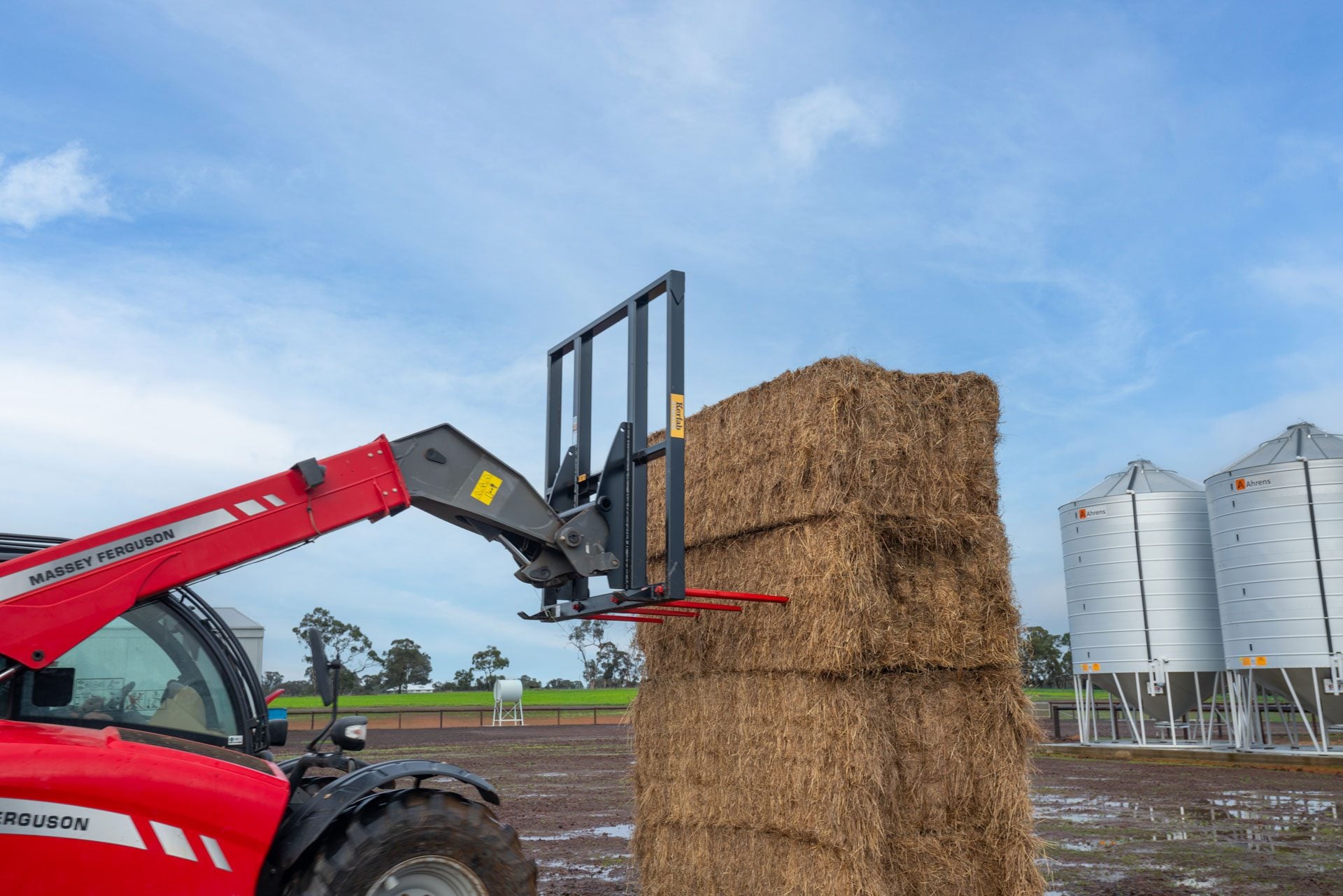

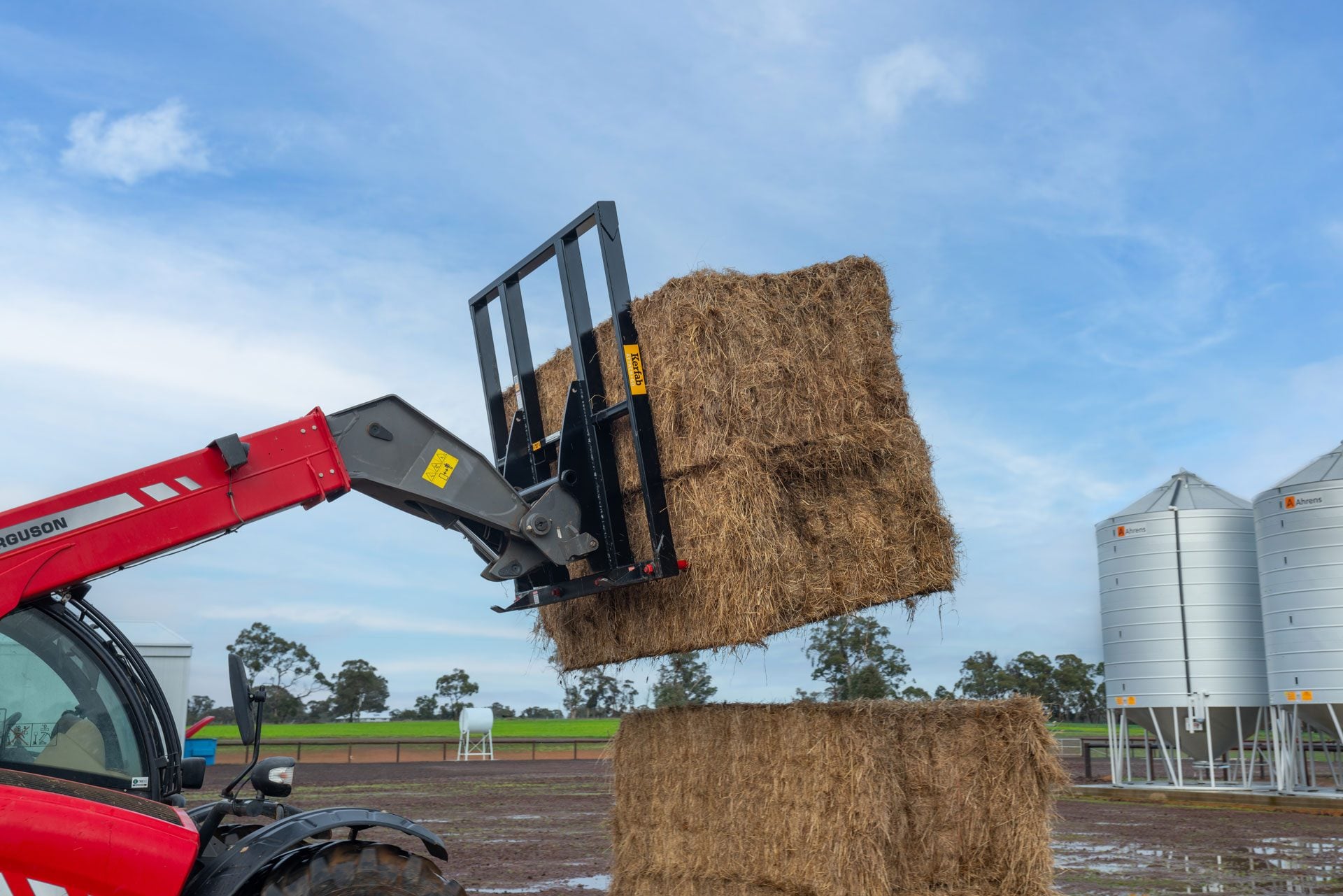

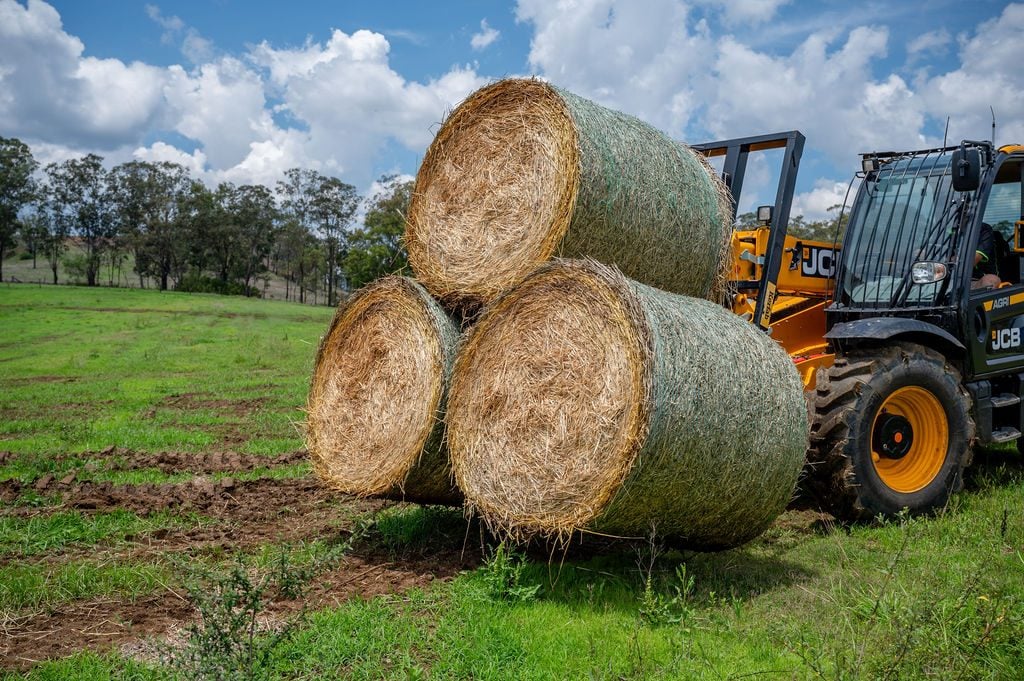

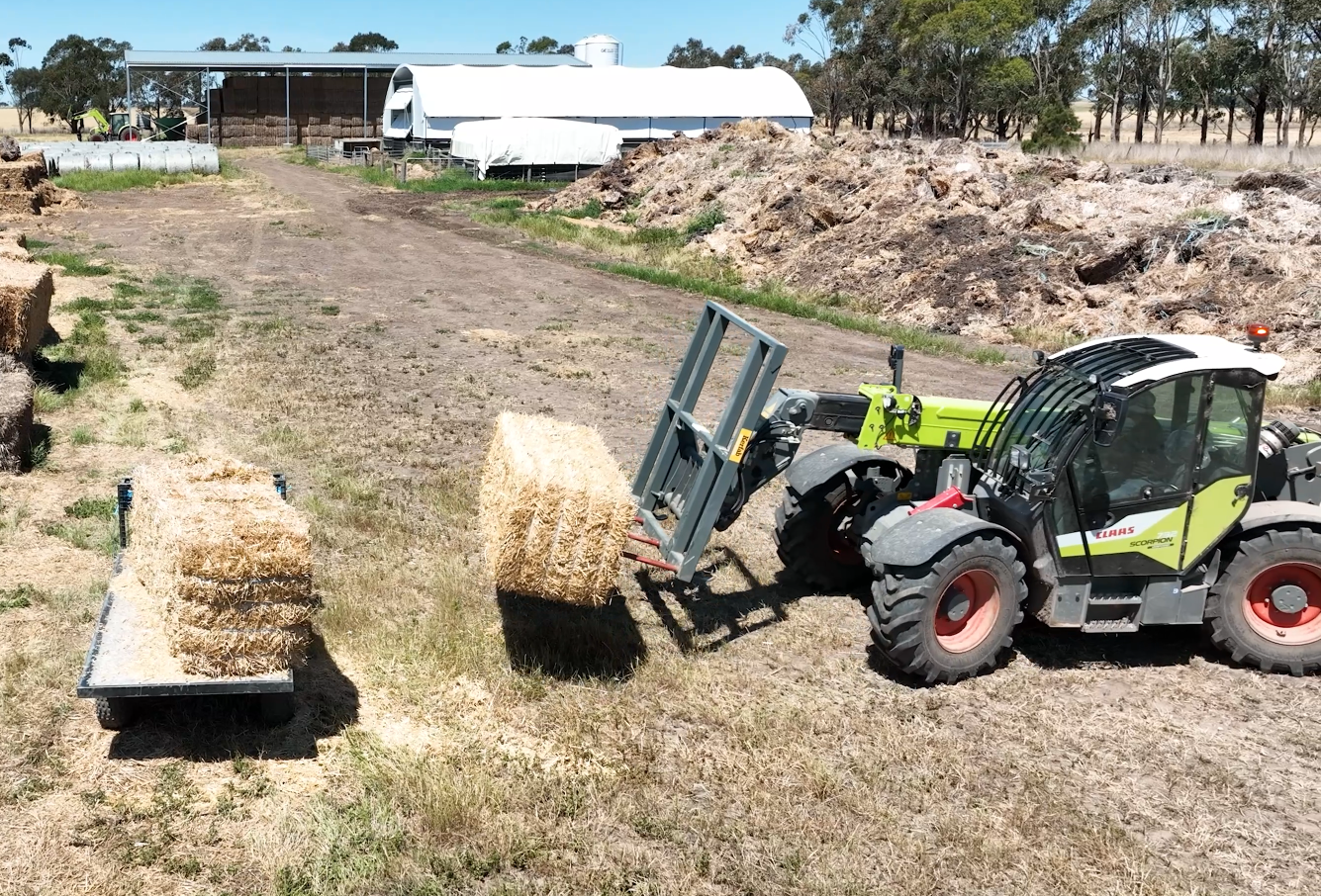

The ability to quickly and safely lift, move, and stack bales is essential on many farms in Australia. Kerfab has been working with Aussie farmers for over 30 years to build Australia’s best Telehandler Bale Fork.

Kerfab’s philosophy for our Hay Forks is that you shouldn’t have to think about them, they should just work when you need them to. If you have ever found yourself fussing with bolt on extensions or disconnecting pallet fork tines from your bale fork, then you’ll know how frustrating what should be a simple attachment has become.

The built in skid gussets allow your Telehandler Bale Fork to stand by itself safely until you need it. Its 36mm Conus II tines won’t bend in even the densest bales. The 4-9mm thick steel frame won’t warp and twist when you lift a full load. If you need an extension then a simple sliding frame can be operated hydraulically or manually.

The size, weight, and amount of bales you handle will help determine what telehandler bale fork best suits you. If you are only ever handling one bale at a time, then a standard tractor bale fork will often do the job.

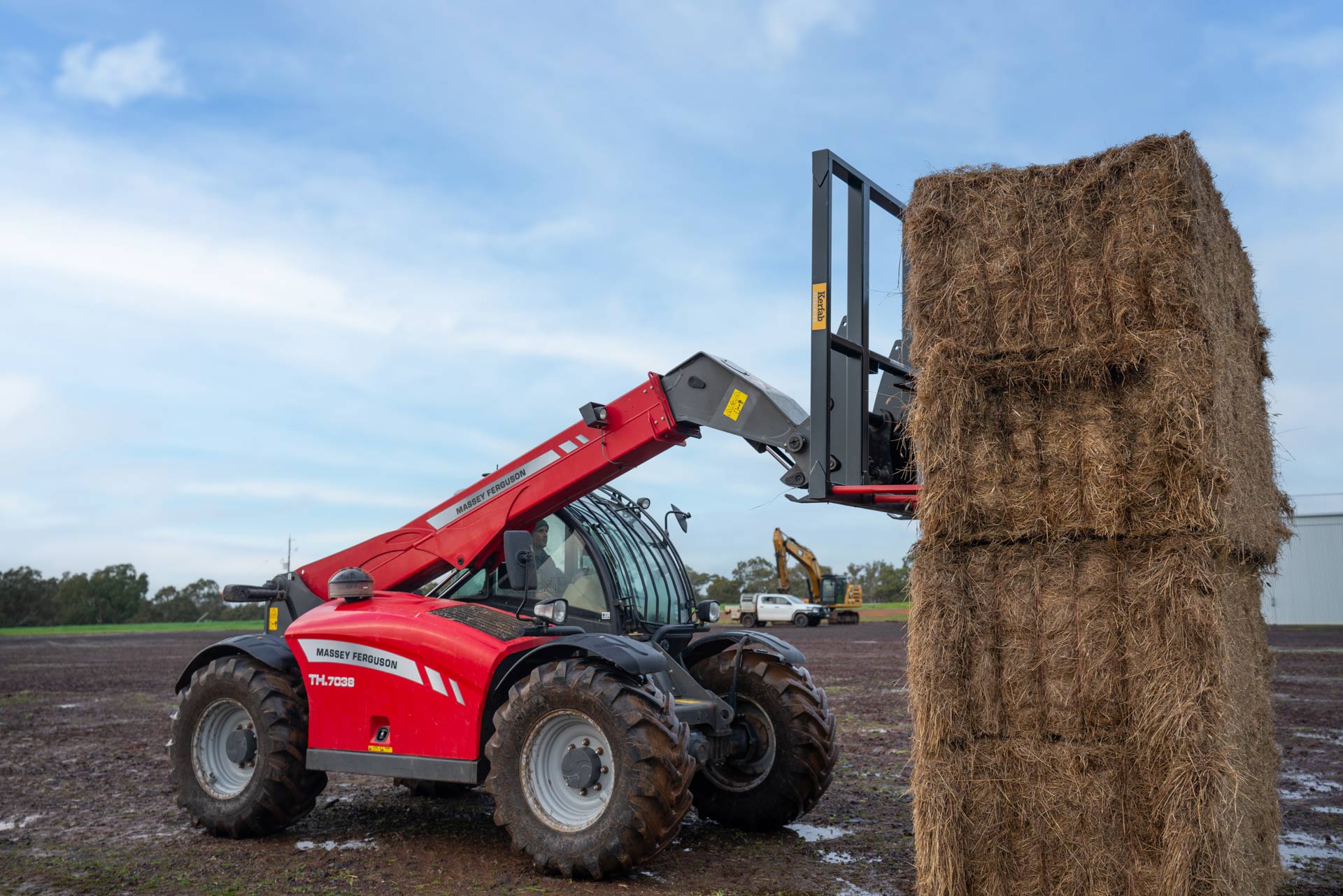

An 1800mm fork will confidently handle 2 bales and can move 3 bales safely, though a 2100mm-2400mm high fork is usually better if you’re regularly moving 3-4 bales at a time. Where you use the fork is also important, taller forks require more awareness when operating as operators can accidentally clip gutters, sheds, and other objects.

Kerfab supplies Telehandler Bale Forks in 4 and 5 tine configurations. The denser your bales, the more tines you’ll need to ensure the bale doesn’t fall apart under its own weight.

Telehandler Bale Fork Attach + Go Guarantee

As part of our Attach+Go Range, your Telehandler Bale Fork will be dispatched within 7 days from the date of order confirmation. Also included is free shipping and a quick quote turnaround of 2 hours.

We’re putting an end to attachments slowing down your operations, with a streamlined order process, so you can get back to doing what you do best, faster.

Read more

The ability to quickly and safely lift, move, and stack bales is essential on many farms in Australia. Kerfab has been working with Aussie farmers for over 30 years to build Australia’s best Telehandler Bale Fork.

Kerfab’s philosophy for our Hay Forks is that you shouldn’t have to think about them, they should just work when you need them to. If you have ever found yourself fussing with bolt on extensions or disconnecting pallet fork tines from your bale fork, then you’ll know how frustrating what should be a simple attachment has become.

The built in skid gussets allow your Telehandler Bale Fork to stand by itself safely until you need it. Its 36mm Conus II tines won’t bend in even the densest bales. The 4-9mm thick steel frame won’t warp and twist when you lift a full load. If you need an extension then a simple sliding frame can be operated hydraulically or manually.

The size, weight, and amount of bales you handle will help determine what telehandler bale fork best suits you. If you are only ever handling one bale at a time, then a standard tractor bale fork will often do the job.

An 1800mm fork will confidently handle 2 bales and can move 3 bales safely, though a 2100mm-2400mm high fork is usually better if you’re regularly moving 3-4 bales at a time. Where you use the fork is also important, taller forks require more awareness when operating as operators can accidentally clip gutters, sheds, and other objects.

Kerfab supplies Telehandler Bale Forks in 4 and 5 tine configurations. The denser your bales, the more tines you’ll need to ensure the bale doesn’t fall apart under its own weight.

Telehandler Bale Fork Attach + Go Guarantee

As part of our Attach+Go Range, your Telehandler Bale Fork will be dispatched within 7 days from the date of order confirmation. Also included is free shipping and a quick quote turnaround of 2 hours.

We’re putting an end to attachments slowing down your operations, with a streamlined order process, so you can get back to doing what you do best, faster.

icon shipping-fast-svgrepo-com
7 Day Lead Time
construction-svgrepo-com (1)
4-9mm thick steel frame

Benefits of Telehandler Bale Fork

icon eye-svgrepo-com
Maximum Visibility
Designed to maximise visibility by removing obstructions in front of the operator and utilising highly visible red tines for increased safety.
icon safety-supervision-svgrepo-com
Minimise Damage to Bales

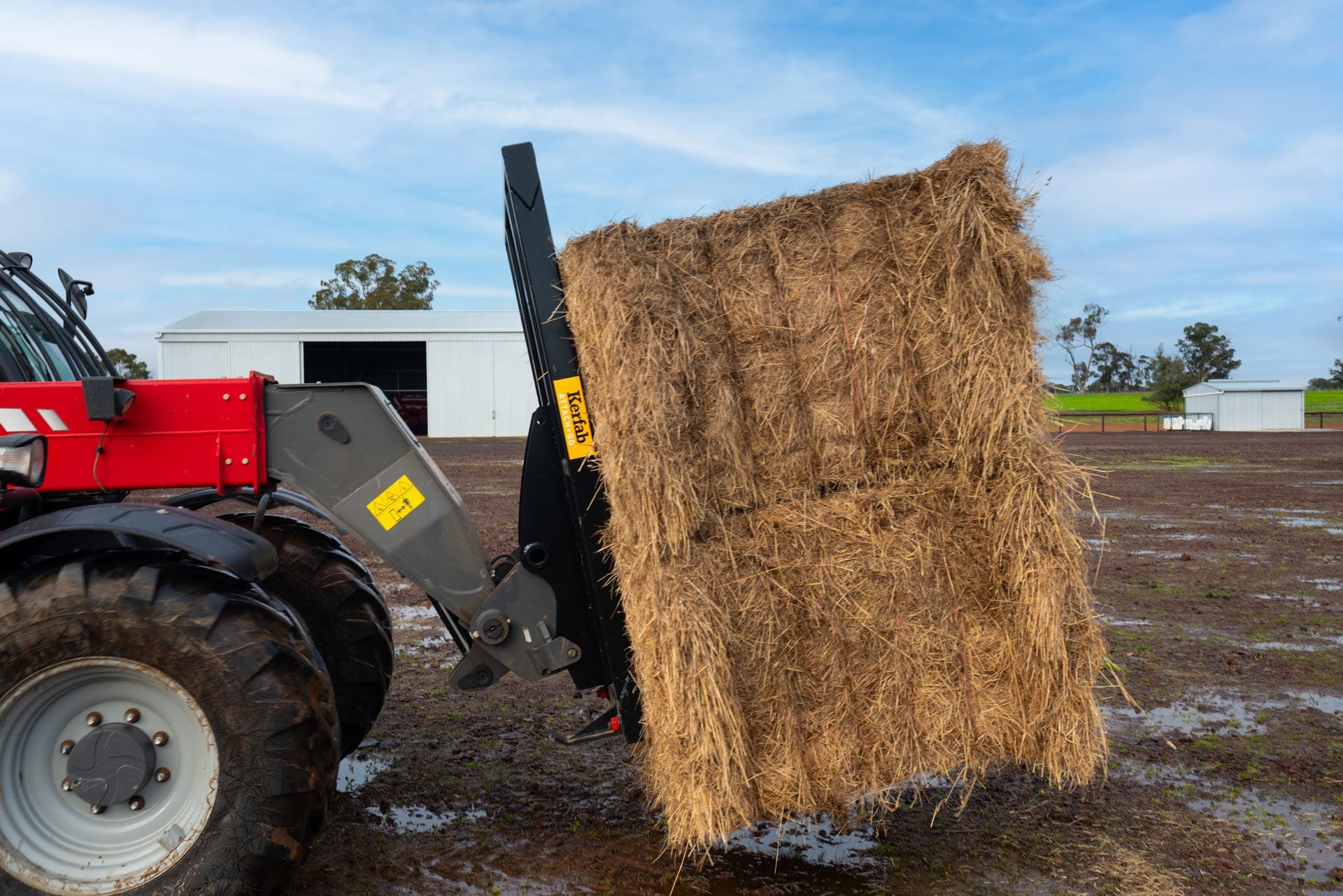

Kerfab Bale Forks are designed to evenly support the weight of the bale and prevent it falling apart or splitting in half.
icon column-spacing
Adjustable Back Frame
Manual or hydraulically adjustable back frames are available extending the height of your back frame to up to 2.7 meters.
icon warranty-term-svgrepo-com
2 Year Warranty
Kerfab offer a massive 2 year warranty on all bale forks.

Container below this one is for inserting additional product panels - it will be hidden if no product panel is selected for the product in question

1
2
3
4

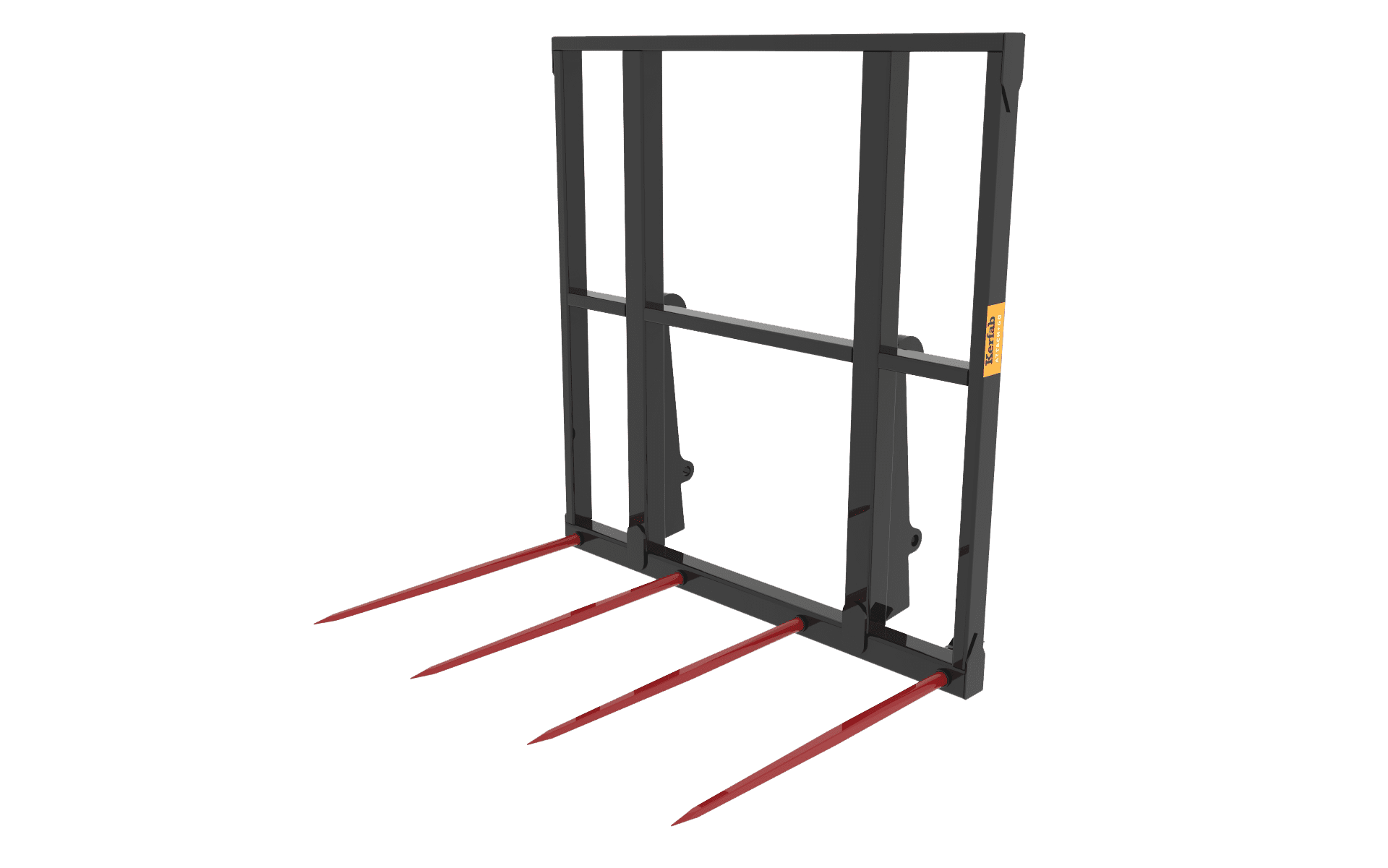

Open Design

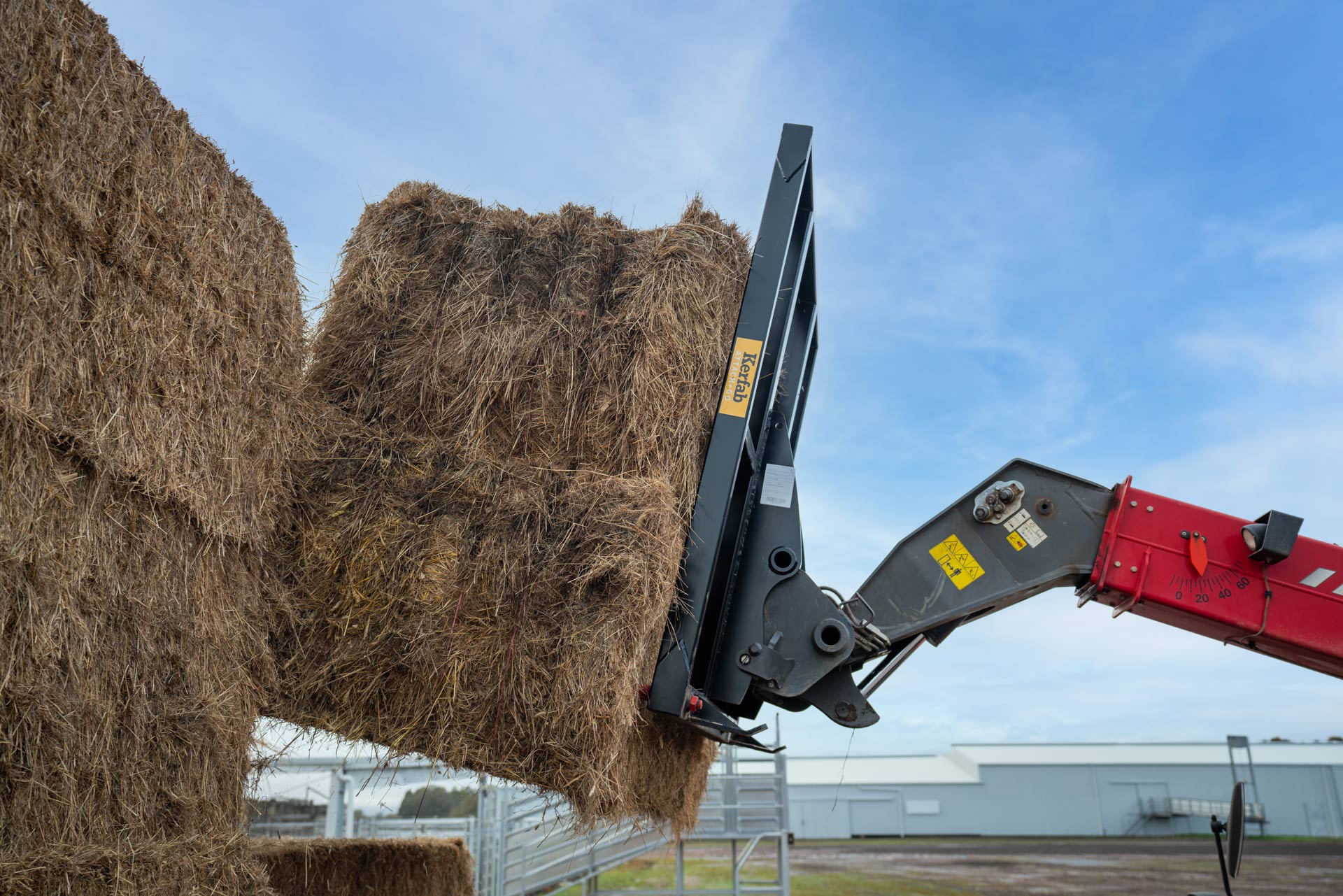

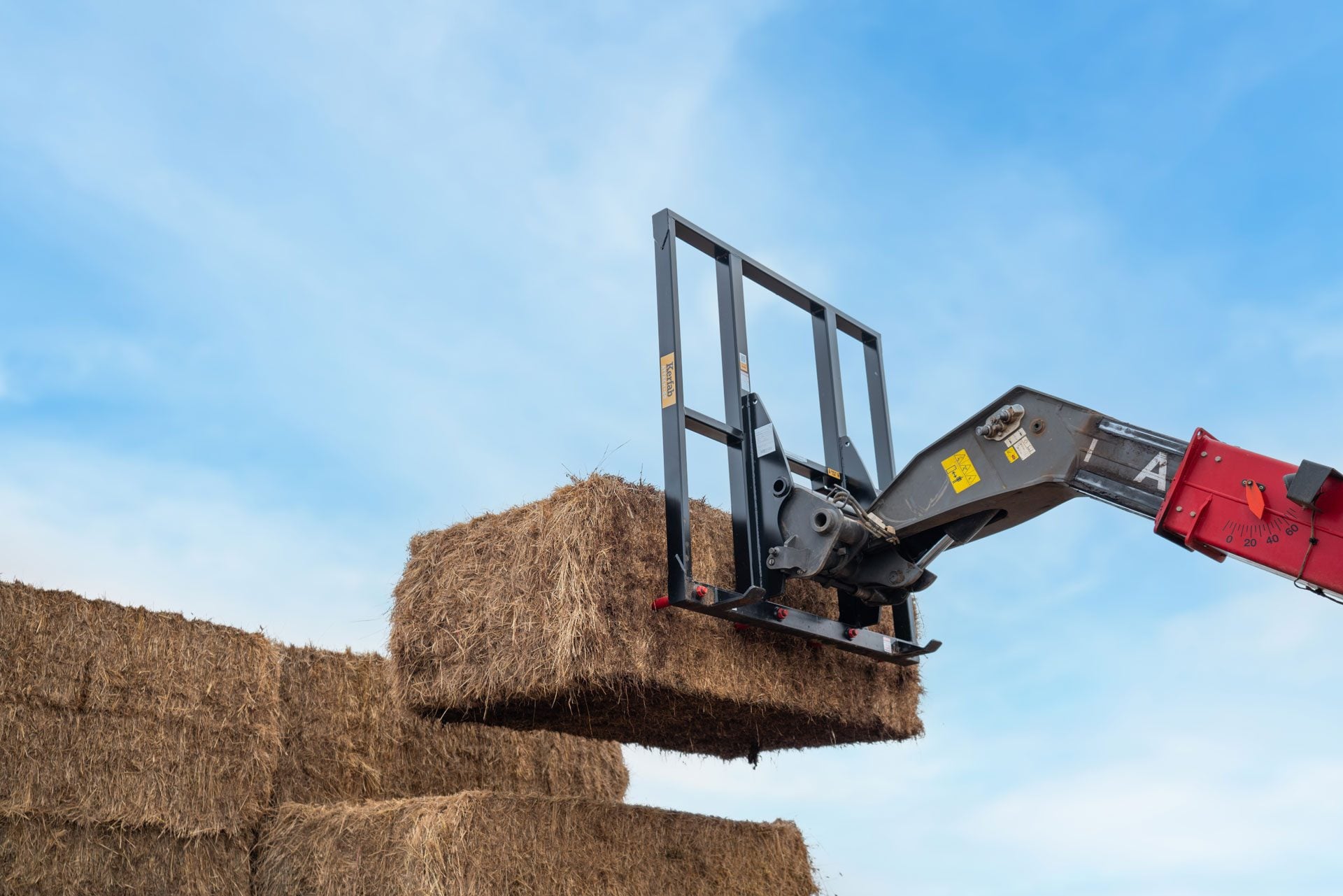

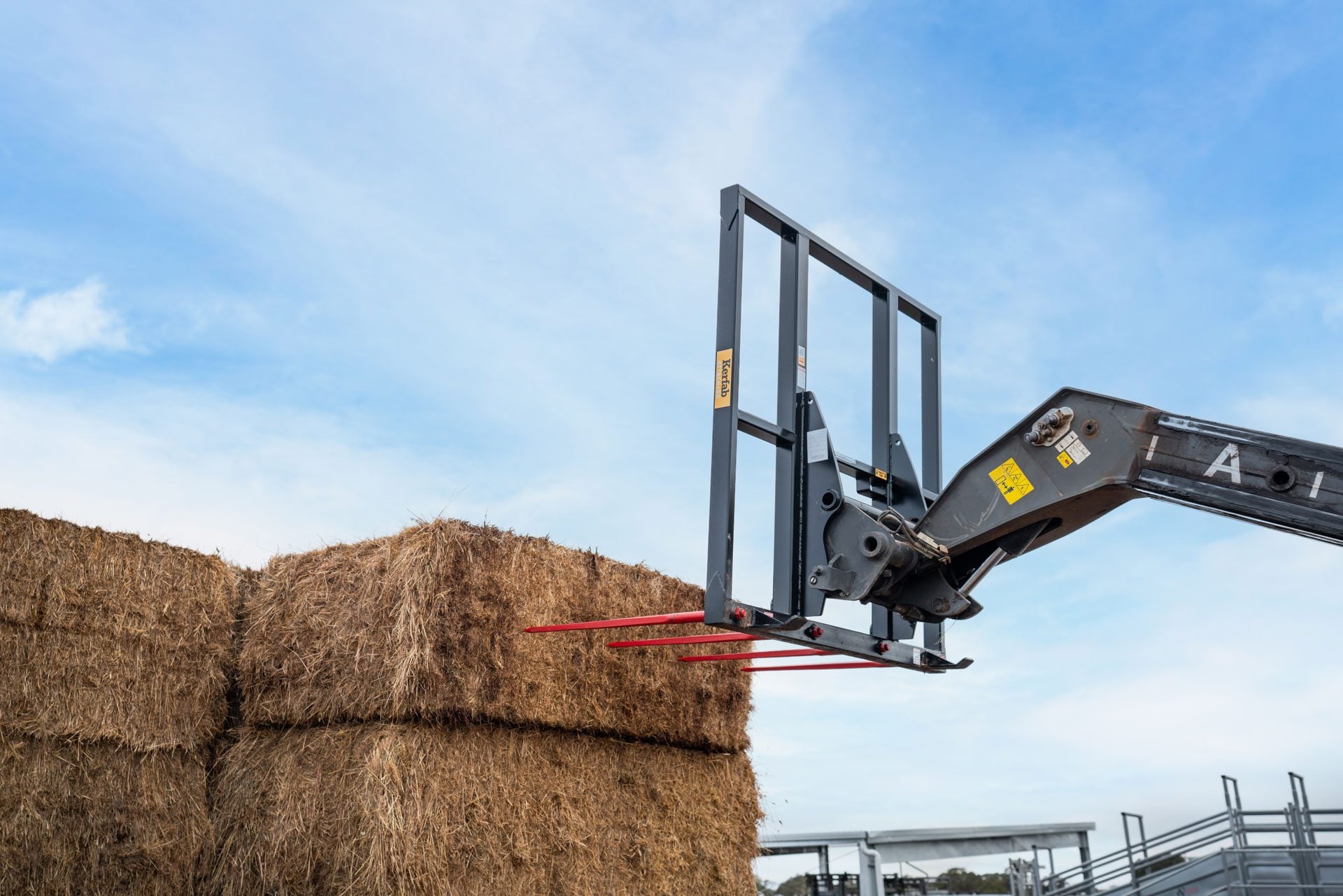

Open back frame design, allows operators to have a clear view of the fork tines when spiking bales and allows for maximum visibility of your load.

Comes with 36mm Conus 2 tines which won’t bend or break while handling the densest bales.

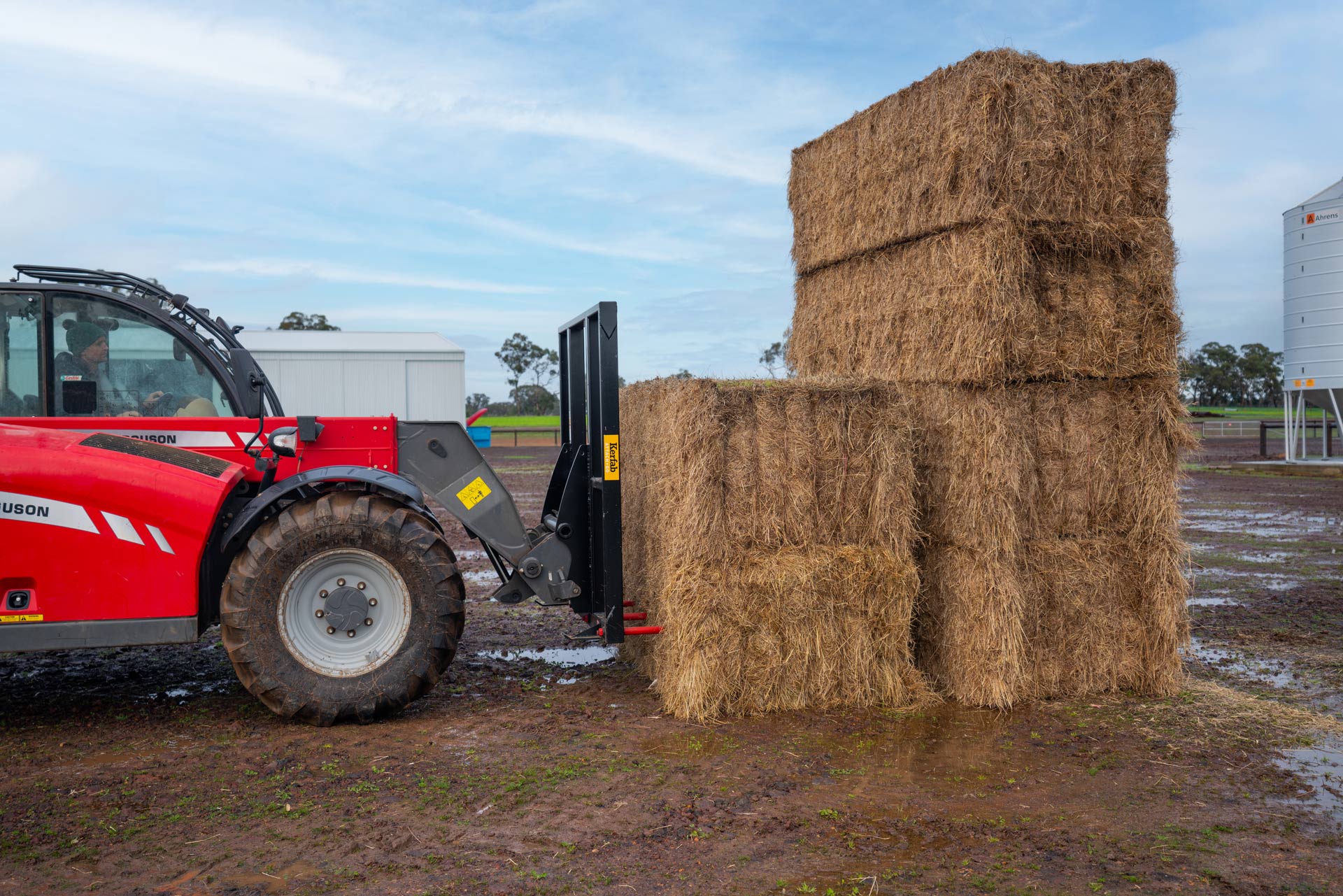

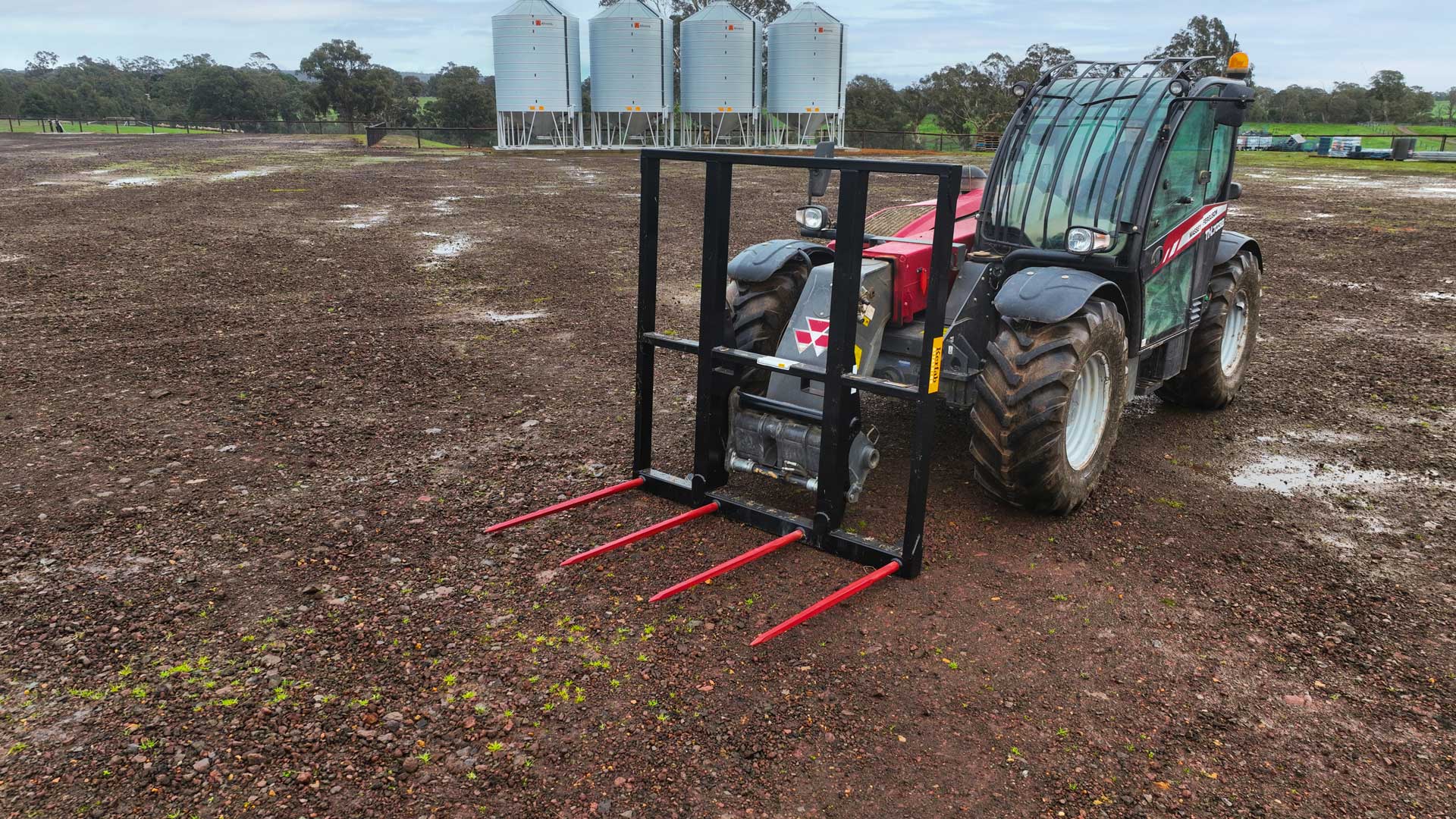

Two Skid Gussets enable the hay fork to stand alone while not in use, making attaching and detaching from your telehandler a simple task.

Built to last with a 4-9mm thick steel frame that won’t warp and twist when you lift a full load.

Specifications

Part No
Width mm
Number of Tines
Number of Bushes
Back Frame Height mm
Weight kg
THF.ST4T18JCBQ
1830
4
4
1800
265
THF.ST5T18JCBQ
1830
5
5
1800
288
Adjustment Option
Retracted Height mm
Extended Height mm
Manual
1500
2400
Manual
1800
2700
Hydraulic
1500
2400
Hydraulic
1800
2700

Documents

icon invoice-warranty-line-svgrepo-com
Square Bale Fork Manual
Refer to the Identification Plate on the Forks for the specifications relevant to this attachment.
clipboard-text-svgrepo-com
Adjustable Bale Fork Risk Assessment
View our plant risk assessment for manuall and hydraulic adjustable backframe.
icon open-book-svgrepo-com
Kerfab Bale Fork Guide
Overview of our range of hay fork specifications and capabilities.
