Round Bale Fork
round bale fork
Round Bale Fork

Round Bale Fork

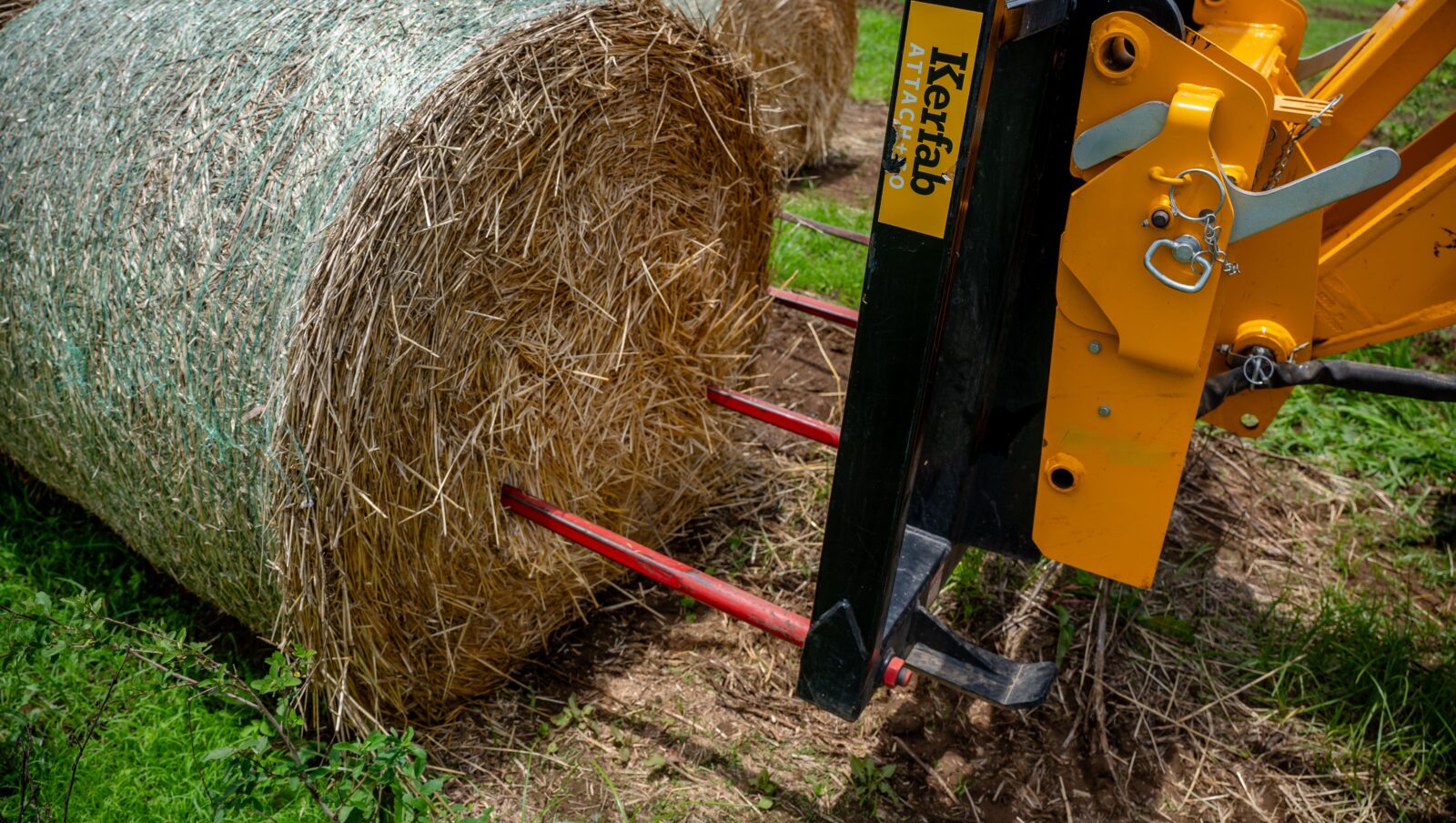

Round bale handling fork attachment for secure bale lifting and stacking

Handling round bales requires control during lifting, transport, and stacking, especially when working in confined yard or shed environments. Round bale handling fork attachment setups need to support the bale securely while preventing movement or rotation during handling.

The Kerfab Round Bale Fork uses a two tine configuration to hold the bale firmly in place, whether piercing the flat face or lifting from underneath. A low frame height and open back design improve visibility when positioning the tines, helping operators align accurately during pickup. With replaceable tines and optional configurations, it supports consistent bale handling across daily farm operations.

plus-svgrepo-com
Fitted with two Conus 2 tines and optional third tine.
Icon - Visibility
Low frame height (900 mm) for improved visibility
Icon - Backframe
Open back frame for clear sight when spiking
icon tools-solid-svgrepo-com
Replaceable tines for ongoing use
icon shipping-fast-svgrepo-com
Despatch within 7 working days of order confirmation
Icon - Warranty
Backed by a 2 year standard warranty + 2 year registered warranty
Get a Quote

Designed for:

Handling round hay bales on farms
Loading and unloading bale transport
Working in sheds and confined yard areas
Stacking bales for storage
Moving bales across paddocks or feed areas

Machine Compatibility

Ag Loader
Telehandler
Bespoke

When requesting a quote, include your machine make and model so the correct hitch configuration can be recommended.

Get a Quote

Performance Benefits

icon safety-supervision-svgrepo-com
Holds bales securely during transport
Once engaged, the tines keep the bale in place and limit unwanted rotation. That stability is important when moving across uneven ground.
bale-of-hay-svgrepo-com
Flexible handling approach
Operators can choose to pierce the flat face or slide underneath the bale. This allows the method to match the situation on site.
Icon - Maintainence
Replaceable tine design
Tines can be replaced when required. This supports long-term use and simplifies maintenance.
forklift-svgrepo-com
Improved visibility when positioning
With a lower frame height and open design, it’s easier to see where the tines are entering. This helps reduce missed placement. Efficient stacking in tight spaces
change-svgrepo-com
Efficient stacking in tight spaces
Working inside sheds or confined yards often limits movement. A compact frame makes it easier to position and stack bales accurately.
cut-svgrepo-com
Built for repeated bale handling
Daily bale work puts constant demand on the attachment. Replaceable tines allow worn components to be swapped without replacing the entire unit.

Engineering design

See it in 3D

Conus 2 tines

The fork is fitted with two Conus 2 tines on the bottom frame. These are designed to hold the bale securely during lifting.

Low frame profile

The frame height is approximately 900 mm. This keeps the attachment compact and improves operator visibility.

Open back frame

The rear frame is open to provide a clear line of sight. This helps when aligning the tines with the bale.

Optional third tine

A third tine can be fitted to the top bar. This provides an additional handling configuration when required.

Specifications

Part Number
Number of tines
Design
Machine Compatibility
UHF.RH2T09
2
Single Style
Ag Loader
UHF.DR4T09
4
Double Style
Ag Loader
UHF.DR5T09
5
Double Style
Ag Loader
THF.RH2T09
2
Single Style
Telehandler
THF.DR4T09
4
Double Style
Telehandler
THF.DR5T09
5
Double Style
Telehandler

Documents

Round Bale Fork

Product Information Sheet

Download
Icon - Operation Manual
Single Style Operation Manual
Refer to the Identification Plate on the Forks for the specifications relevant to this
Download
Icon - Operation Manual
Double Style Operation Manual
Refer to the Identification Plate on the Forks for the specifications relevant to this
Download
Icon - Guide/Brochure
Kerfab Bale Fork Guide
Overview of our range of hay fork specifications and capabilities.
Download

FAQ

What is a round bale handling fork attachment used for?
A round bale handling fork attachment is used to lift, move, and stack round bales safely. It allows operators to either pierce the bale or lift from underneath depending on the handling method required.
Yes. Double configurations allow multiple round bales to be carried side by side or stacked. The setup depends on the configuration selected for your machine and operation.
Yes. The tines are fully replaceable when worn. This allows the attachment to remain in service without needing full replacement, supporting long-term use.
Get a Quote

Get a Quote

Tell us your machine type, make and model, and the job the attachment will be used for.

Our team will confirm the correct configuration and provide a quote.

Most quotes are returned within one business day.




Our team will review your machine compatibility and respond with the correct attachment configuration and pricing.

Description

Handling round bales requires control during lifting, transport, and stacking, especially when working in confined yard or shed environments. Round bale handling fork attachment setups need to support the bale securely while preventing movement or rotation during handling.

The Kerfab Round Bale Fork uses a two tine configuration to hold the bale firmly in place, whether piercing the flat face or lifting from underneath. A low frame height and open back design improve visibility when positioning the tines, helping operators align accurately during pickup. With replaceable tines and optional configurations, it supports consistent bale handling across daily farm operations.

Additional information

Machine Type

Ag Loader, Telehandler
Part Number

RHF2T
