Cotton Bale Fork
Cotton Bale Fork
Cotton Bale Fork
Cotton Bale Fork
Cotton Bale Fork

Cotton Bale Fork

Cotton bale forks for safe and efficient module handling

Handling cotton modules requires clean entry, stable lifting, and minimal damage to the bale wrap during transport. Cotton bale forks need to move through the module smoothly while maintaining control and visibility during positioning.

The Kerfab Cotton Bale Fork is available in 3 tine and 5 tine configurations, allowing operators to match the setup to their handling approach. An open back frame improves visibility during piercing and lifting, while the fixed design keeps operation straightforward with no hydraulics or moving parts. The 5 tine option provides additional support across the bale, helping reduce stretching and plucking during handling.

icon steel-claws-svgrepo-com
Available in 3 tine or 5 tine configurations
Icon - Width
1050 mm standard backframe height
Icon - Maintainence
No hydraulics and no moving parts
icon safety-supervision-svgrepo-com
Backed by a 2 year standard warranty + 2 year registered warranty
Get a Quote

Designed for:

Loading cotton modules in the yard.

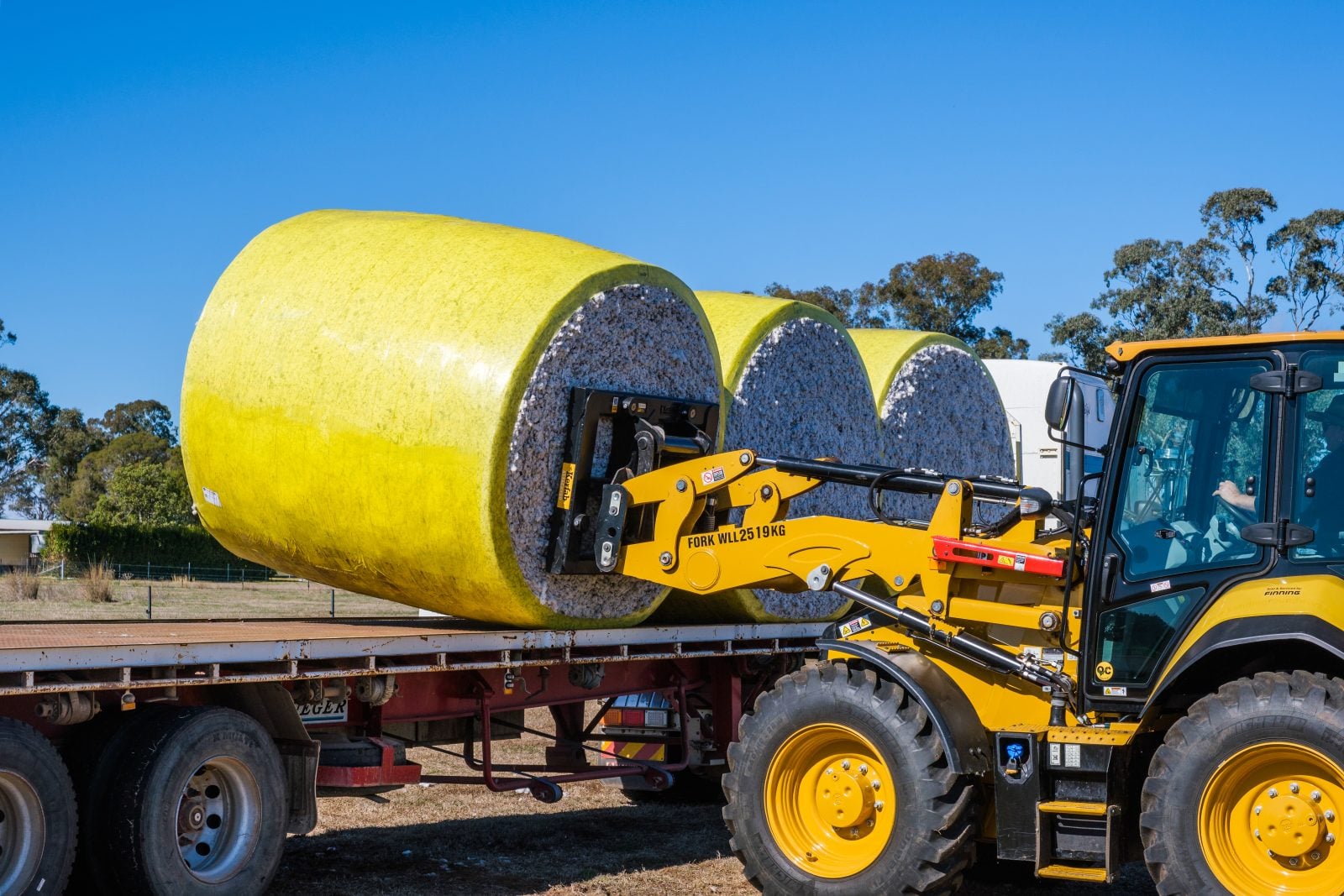

Unloading cotton modules from transport.
Moving modules around gin and storage areas.
Handling wrapped cotton bales during site transfer.
Cotton operations where controlled bale piercing matters.

Machine Compatibility

Telehandler
Wheel Loader
Bespoke

When requesting a quote, include your machine make and model so the correct hitch configuration can be recommended.

Get a Quote

Performance Benefits

icon layers-svgrepo-com
Smoother bale entry
The tines are shaped to glide through the bale more smoothly. This helps reduce damage to the wrapping during pickup.
Icon - Visibility
Better operator visibility
The open back frame gives a clearer view during approach and lift. That helps the operator place the fork more accurately.
Icon- ticks
Safe and efficient
Tines are designed to spike through without pushing cotton out, making lifting and loading bales safer and keeping bales in place without slipping or spinning.
icon tools-solid-svgrepo-com
Controlled bale handling
The tine arrangement supports the bale while lifting and moving. That helps maintain bale integrity during transport around the site.

Engineering design

See it in 3D

Open back frame

The back frame is open to improve operator sight during piercing and lifting. This helps with cleaner entry and better bale placement.

3 or 5 tine layouts

The fork is manufactured in both 3 tine and 5 tine versions. This allows the attachment to be matched to the handling approach required on site.

Thicker centre tine

The bottom middle tine is 75 mm in diameter. That added thickness supports the highest load point in the lower section.

Balanced outer tines

The top tines and the two outer bottom tines are 60 mm in diameter. This layout helps distribute module weight more evenly across the fork and stops the bale from spinning.

Specifications

Part Number
Number of Tines
Back Frame Height mm
TCF.3T
3
1050
TCF.5T
5
1050

See it in action

Play Video

Documents

Cotton Bale Fork

Product Information Sheet

Download
Icon - Operation Manual
Operation Manual
Refer to the Identification Plate on the forks for the specifications relevant to this attachment.
Download

FAQ

Can this attachment be used with a telehandler?
Yes. The Cotton Bale Fork can be configured for a range of machine types used in cotton handling, including telehandlers, wheel loaders, tractors and backhoes. Provide your machine details when requesting a quote so the correct mounting setup can be supplied.
Both configurations are designed for cotton module handling, but the 5 tine version provides more support across the bale. This added support improves stability during lifting and helps reduce stretching and plucking compared with a 3 tine setup.
The main confirmed options are machine class and tine count. This product is offered in telehandler and wheel loader versions, with either 3 tines or 5 tines. When requesting a quote, include your machine make and model and whether your operation prefers the conventional 3 tine setup or the added stability of the 5 tine version.
Get a Quote

Get a Quote

Tell us your machine type, make and model, and the job the attachment will be used for.

Our team will confirm the correct configuration and provide a quote.

Most quotes are returned within one business day.




Our team will review your machine compatibility and respond with the correct attachment configuration and pricing.

Description

Handling cotton modules requires clean entry, stable lifting, and minimal damage to the bale wrap during transport. Cotton bale forks need to move through the module smoothly while maintaining control and visibility during positioning.

The Kerfab Cotton Bale Fork is available in 3 tine and 5 tine configurations, allowing operators to match the setup to their handling approach. An open back frame improves visibility during piercing and lifting, while the fixed design keeps operation straightforward with no hydraulics or moving parts. The 5 tine option provides additional support across the bale, helping reduce stretching and plucking during handling.

Additional information

Machine Type

Telehandler, Wheel Loader
Size

H 1050mm
Part Number

LCBF3T, LCBF5T, TCBF3T, TCBF5T
