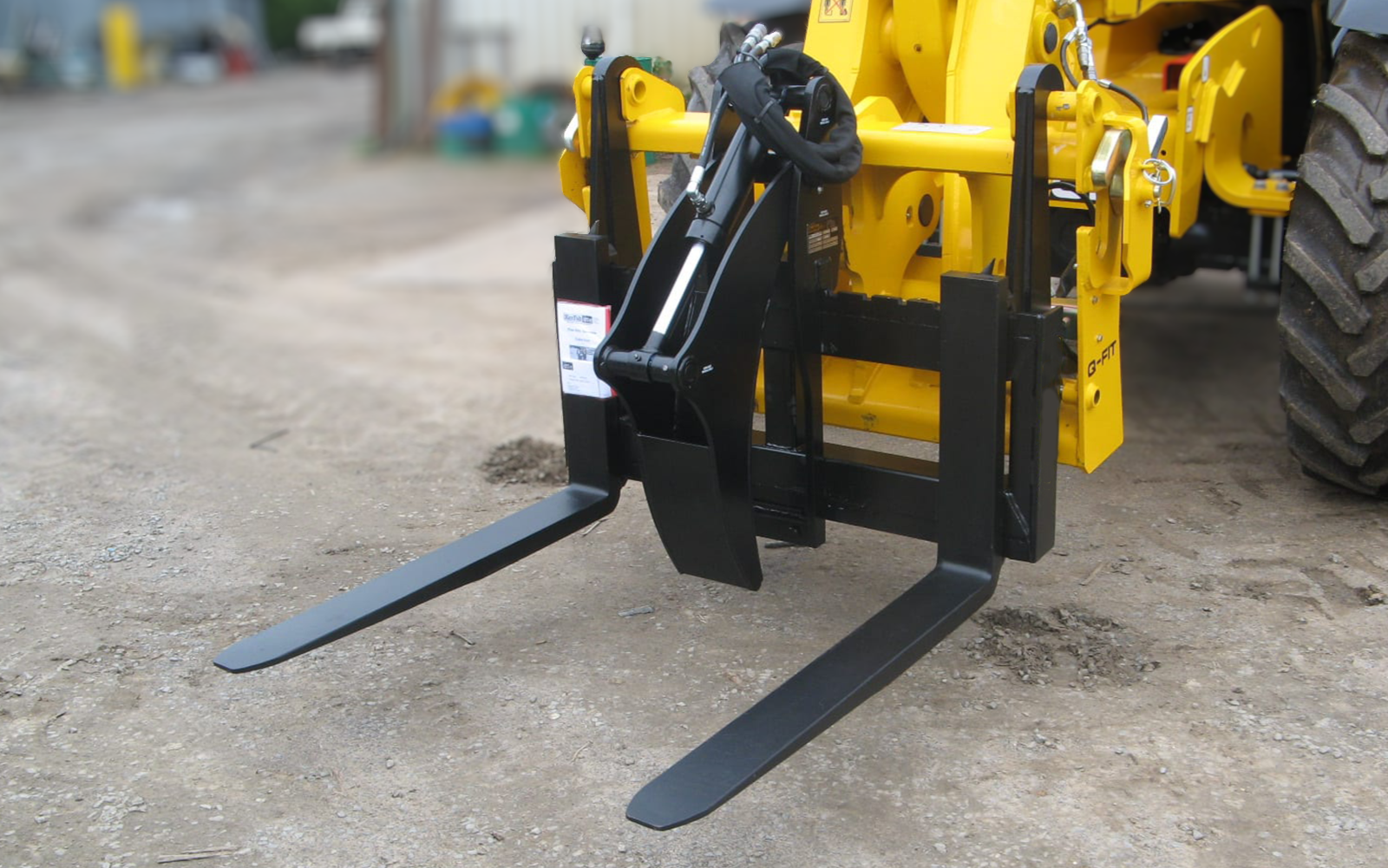

Pallet Fork Log Grab

Name: Pallet Fork Log Grab Attachment | Kerfab
SKU: f94483adbe13

Pallet fork log grab attachment for secure handling of logs and pipes

Handling logs, pipes, and poles requires more control than standard pallet forks can provide, especially when materials are irregular and difficult to balance. Pallet fork log grab attachment units combine lifting and clamping, allowing operators to secure loads during transport and placement.

The Kerfab Pallet Fork Log Grab uses curved grappling arms to guide materials into position as they are lifted, helping form stable bundles without constant repositioning. Available in single and dual beak configurations, the setup can be matched to different load sizes and handling requirements. The grab can also be removed when not needed, allowing the attachment to function as a standard pallet fork for mixed handling tasks.

Available in single or dual beak configurations

Removable grab converts unit to standard pallet fork

1220 mm ITA tines fitted as standard

Adjustable tine spacing with secure locking

Curved grappling arms for controlled bundling

Backed by a 2 year standard warranty

Designed for:

Handling logs in forestry and yard environments

Moving pipes and poles on construction sites

Transporting irregular or round materials

Bundling materials for storage or transport

General-purpose material handling with added grip

Machine Compatibility

When requesting a quote, include your machine make and model so the correct hitch configuration can be recommended.

Performance Benefits

Keeps irregular loads under control

Logs and pipes don’t sit flat like pallets. The curved grab arms guide and contain materials, helping prevent shifting during transport.

Forms stable bundles during lifting

As materials roll into position, they group naturally. This makes it easier to move multiple items in a controlled way.

Handles multiple load types with one attachment

Switching between logs and palletised goods can slow down workflow. The removable beak allows the attachment to serve both purposes.

Adapts to different load sizes

Single and dual beak options provide flexibility. Operators can choose the setup that matches the volume and type of material.

Maintains visibility while working

An open frame design keeps the load in view. This improves control when positioning or stacking materials.

Engineering design

See it in 3D

Curved grappling arms

The grab arms are shaped to guide materials along the inner surface. This helps loads roll into position during lifting.

Open back frame

The frame is designed to provide clear visibility of the load. This supports accurate positioning during operation.

Removable grab assembly

The beak can be removed when not required. This converts the unit into a standard pallet fork.

ITA tine system

High strength ITA tines are fitted as standard. These can be adjusted and locked across multiple latching points.

Specifications

Part Number	Capacity kg	Weight kg	Machine Compatibility
UGT.PF1225	2500	280	Ag Loader/Telehandler
UGT.PF1230	3000	310	Ag Loader/Telehandler
UGT.PF1240	4000	410	Ag Loader/Telehandler
WGT.PF1225	2500	330	Wheel Loader
WGT.PF1230	3000	510	Wheel Loader
WGT.PF1240	4000	530	Wheel Loader
WGT.PF1650	5000	710	Wheel Loader
WGT.PF1660	6000	740	Wheel Loader

Documents

Pallet Fork Log Grab

Product Information Sheet

Operation Manual

Refer to the Identification Plate on the forks for the specifications relevant to this attachment.

Download

FAQ

What is a pallet fork log grab attachment used for?

A pallet fork log grab attachment is used to lift, move, and bundle logs, pipes, and poles. It combines standard pallet fork functionality with a grappling system for handling irregular materials.

Can the grab be removed?

Yes. The beak can be removed when not required. This allows the attachment to be used as a standard pallet fork for palletised loads.

What is the difference between single and dual beak designs?

Single beak designs are suited to lighter or smaller loads. Dual beak configurations provide more grip and are better suited to lifting multiple or heavier materials.

Get a Quote

Tell us your machine type, make and model, and the job the attachment will be used for.

Our team will confirm the correct configuration and provide a quote.

Most quotes are returned within one business day.

Our team will review your machine compatibility and respond with the correct attachment configuration and pricing.
