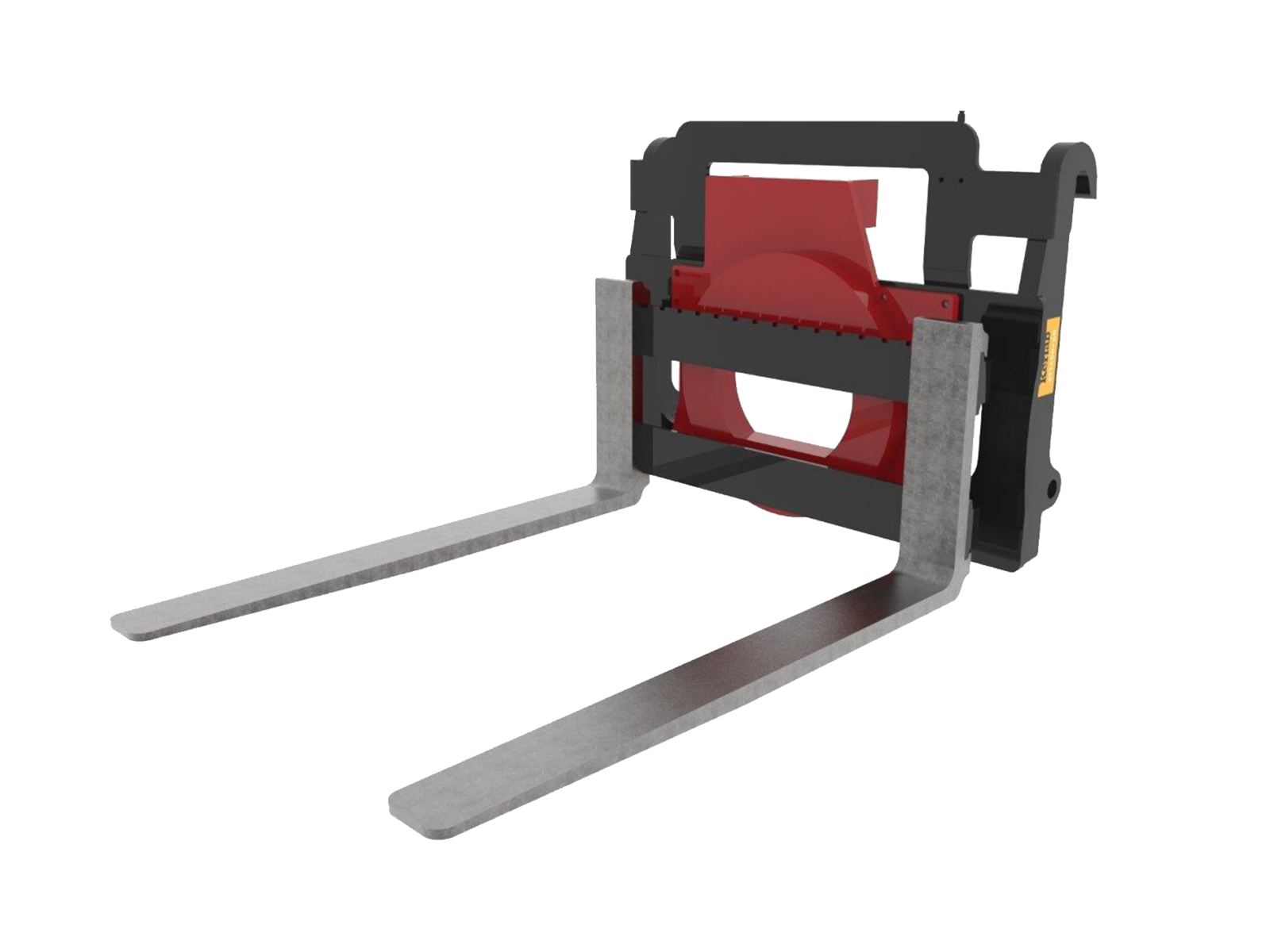

Kerfab pallet fork rotator attachment with rotating carriage for handling pallets.

Pallet Fork Rotator

Pallet fork rotator attachment for controlled load rotation

Handling bins, containers, and palletised loads often requires more than just lifting—controlled rotation becomes critical when positioning, emptying, or aligning materials in confined spaces. A pallet fork rotator attachment allows operators to rotate loads during handling, improving control where standard forks are limited.

The Kerfab Pallet Fork Rotator provides smooth rotation of loads up to 180°, allowing materials to be positioned or discharged without repositioning the machine. Adjustable ITA tines make it easy to match different load sizes, while the compact frame supports operation in restricted environments.

With multiple capacity options and compatibility across common hitch types, it supports efficient handling across a range of industries.

ventilation-fan-1-svgrepo-com
Rotates loads up to 180° for controlled positioning and discharge
Icon - Adjustable
Adjustable ITA tines across the carriage width
icon steel-claws-svgrepo-com
Standard 1220 mm tine length
icon weight-svgrepo-com
Available in multiple capacity configurations (up to 4000 kg)
Icon - Compatible
Compatible with a range of hitch types
Icon - Warranty
Backed by a 2 year standard warranty + 2 year registered warranty
Get a Quote

Designed for:

Handling bins and containers
Emptying materials from pallets
Working in confined or restricted spaces
Aligning loads during placement
General-purpose pallet handling with rotation

Machine Compatibility

Ag Loader
Telehandler
Bespoke

When requesting a quote, include your machine make and model so the correct hitch configuration can be recommended.

Get a Quote

Performance Benefits

Icon- ticks
Improves control when unloading materials
Rotating the load allows contents to be emptied without tipping the machine or repositioning. This is especially useful when handling bins or containers.
icon gear-wheel-svgrepo-com
Increases efficiency in confined spaces
Limited space can restrict machine movement. Being able to rotate the load reduces the need for repositioning during handling.
change-svgrepo-com
Adapts to different load sizes
Adjustable tines allow the fork spacing to be changed quickly. This makes it easier to handle a variety of pallet and container sizes.
icon layers-svgrepo-com
Supports precise load placement
Rotation allows operators to align loads more accurately. This is useful when positioning materials into tight or defined spaces.
icon construction-worker-svgrepo-com
Handles varied applications across industries
From agriculture to construction and waste handling, the rotator supports a wide range of tasks. This makes it a flexible addition to existing equipment.

Engineering design

Kerfab pallet fork rotator attachment with rotating carriage for handling pallets.

180° rotation system

The rotator allows loads to be turned up to 180 degrees. This enables controlled tipping and positioning during handling.

ITA tine configuration

Fitted with ITA class tines depending on capacity. Tines can be adjusted across the carriage for different load sizes.

Hydraulic rotation mechanism

Hydraulic operation provides smooth and controlled rotation. This supports accuracy when positioning or unloading.

Compact frame design

The frame is designed to remain compact during operation. This supports use in tight or restricted environments.

Specifications

Part Number
Capacity kg
Width mm
Tine Length
UPH.RO1022
2200
1000
1220
UPH.RO1132
3200
1150
1220
UPH.RO1340
4000
1300
1220

Documents

Pallet Fork Rotator

Product Information Sheet

Download
Icon - Operation Manual
Operation Manual
Refer to the Identification Plate on the forks for the specifications relevant to this attachment.
Download

FAQ

What is a pallet fork rotator attachment used for?
A pallet fork rotator attachment is used to lift and rotate loads during handling. It is commonly used for emptying bins, aligning materials, and working in confined spaces where repositioning is limited.
The rotator allows loads to be rotated up to 180 degrees. This provides full control when tipping or positioning materials during operation.
Yes. The ITA tines can be adjusted across the carriage width and locked into place. This allows the attachment to suit different pallet sizes and container types.
