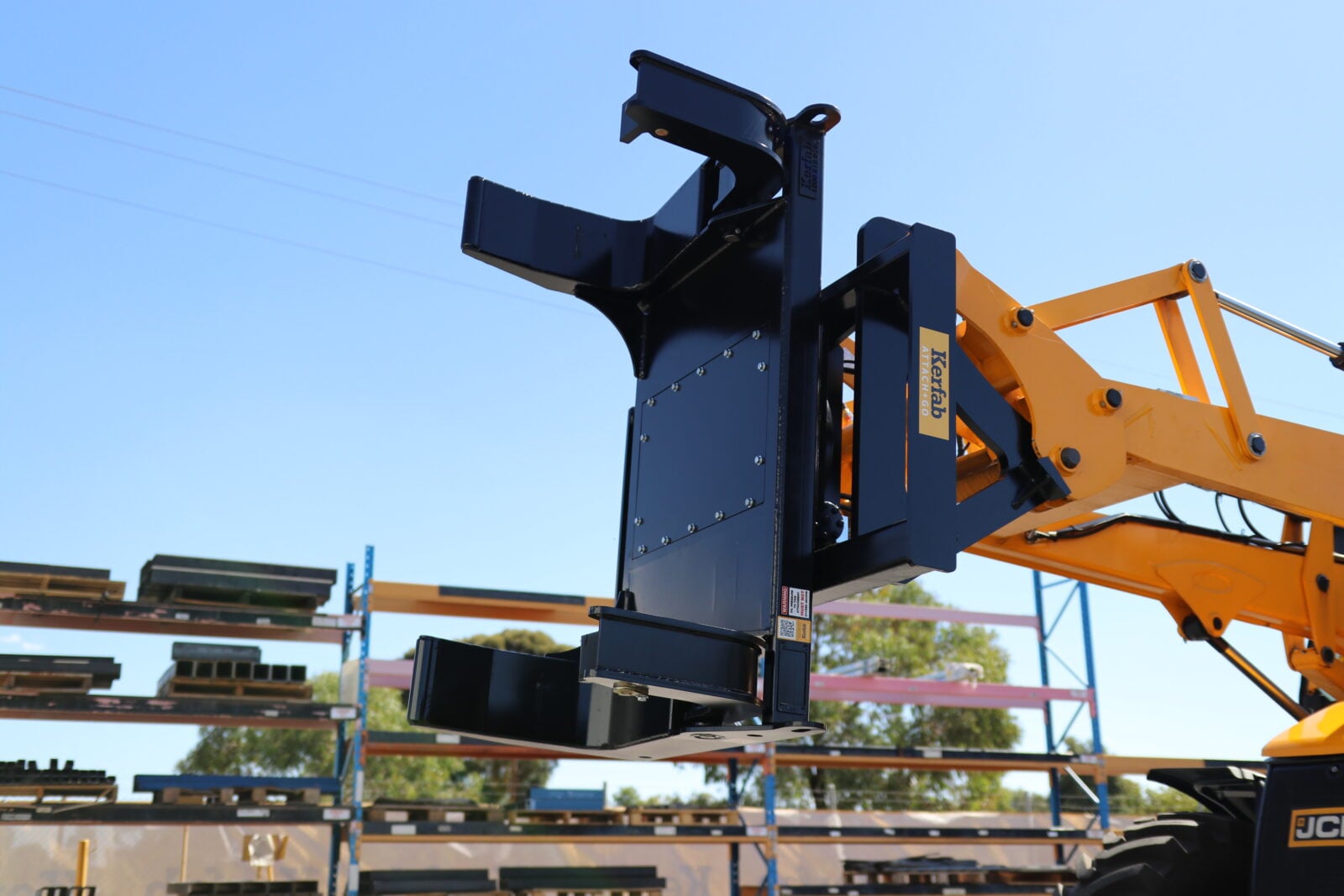

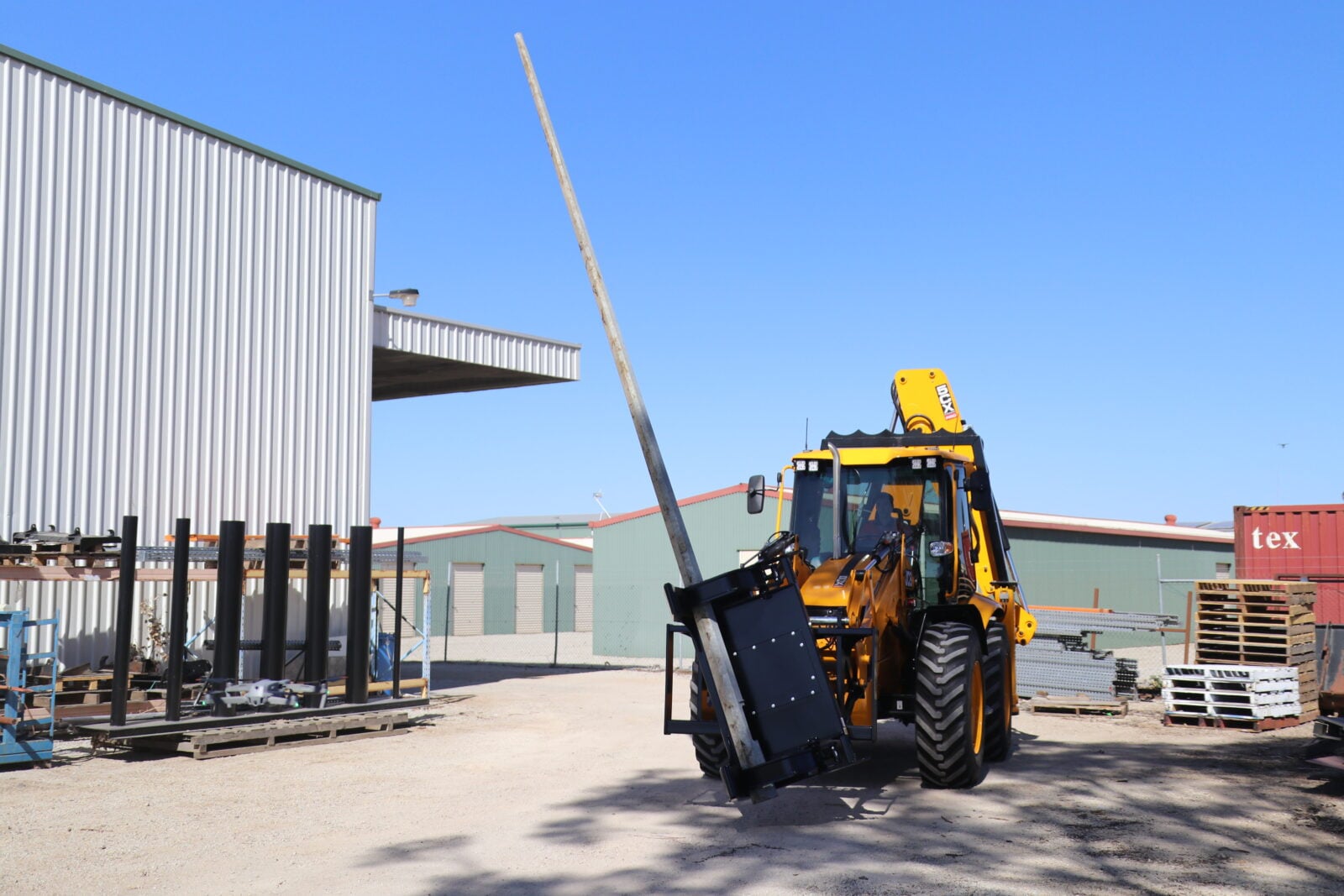

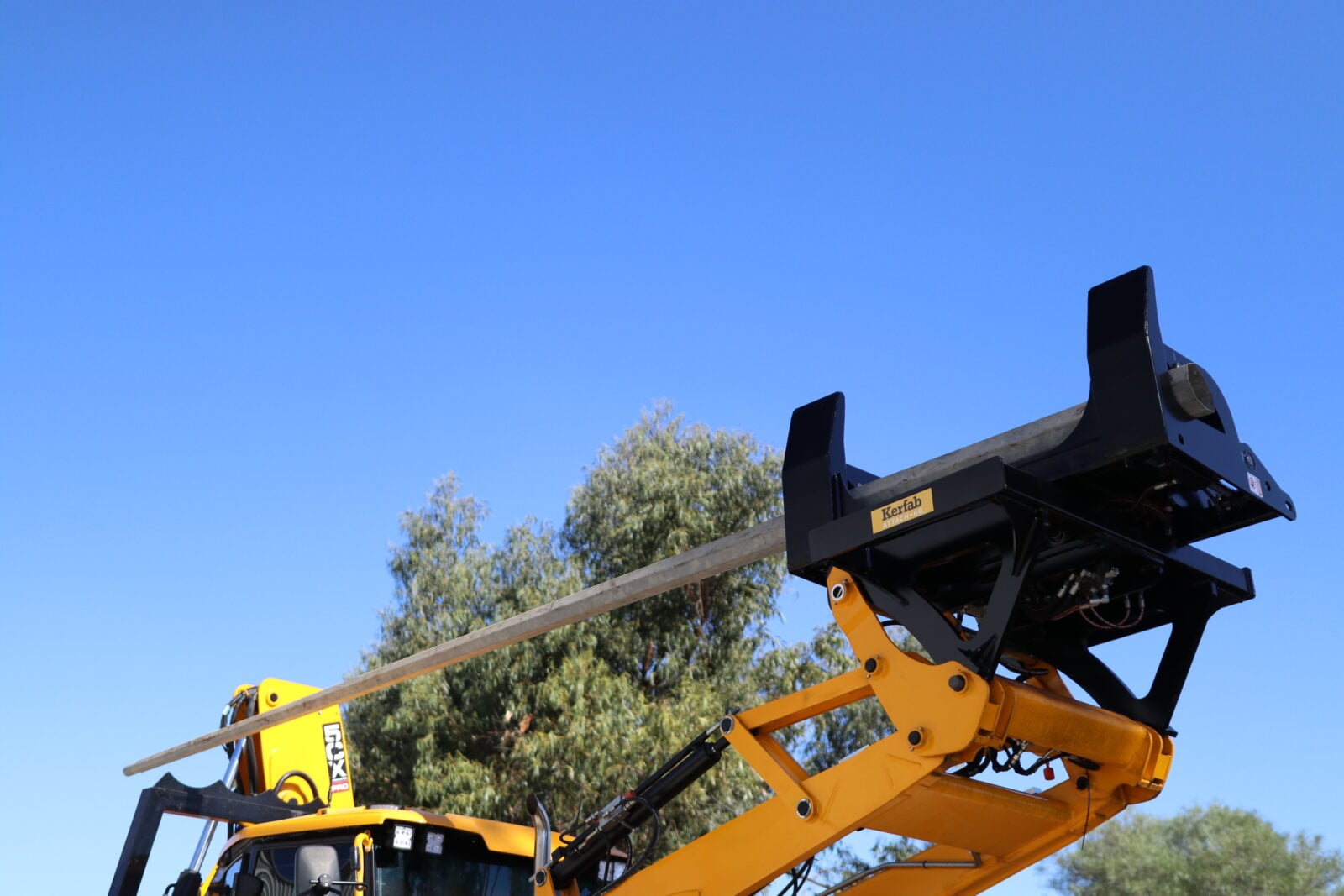

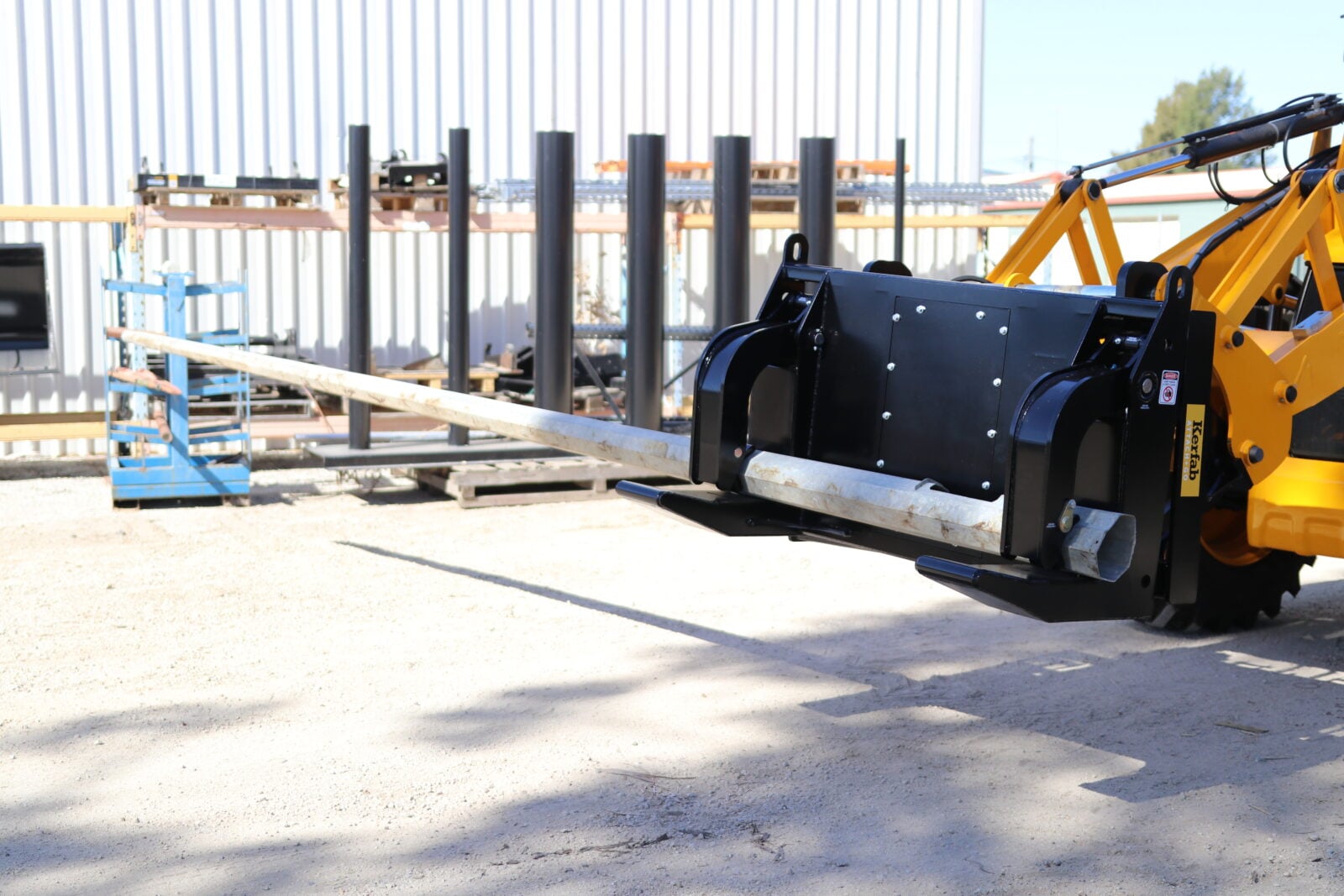

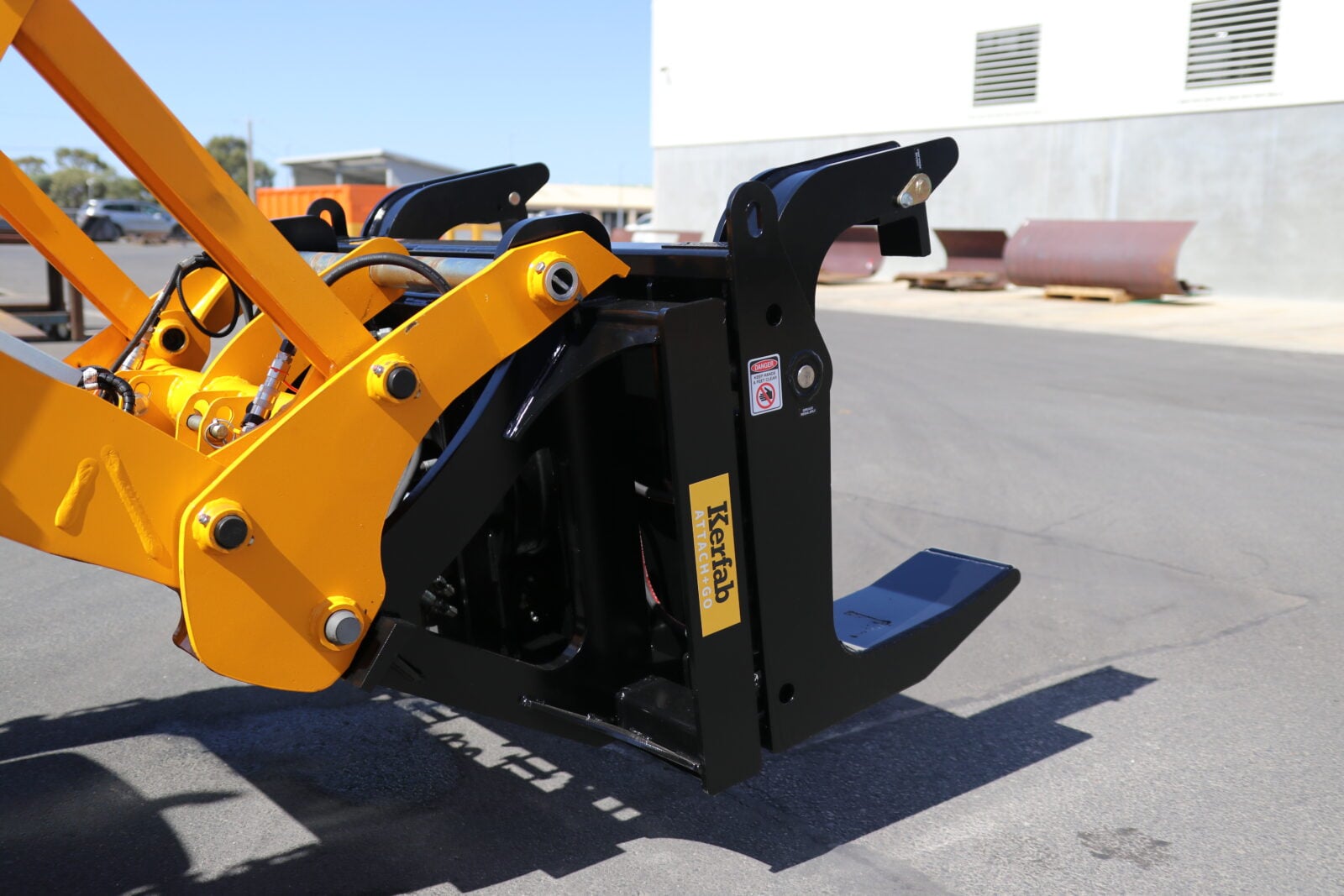

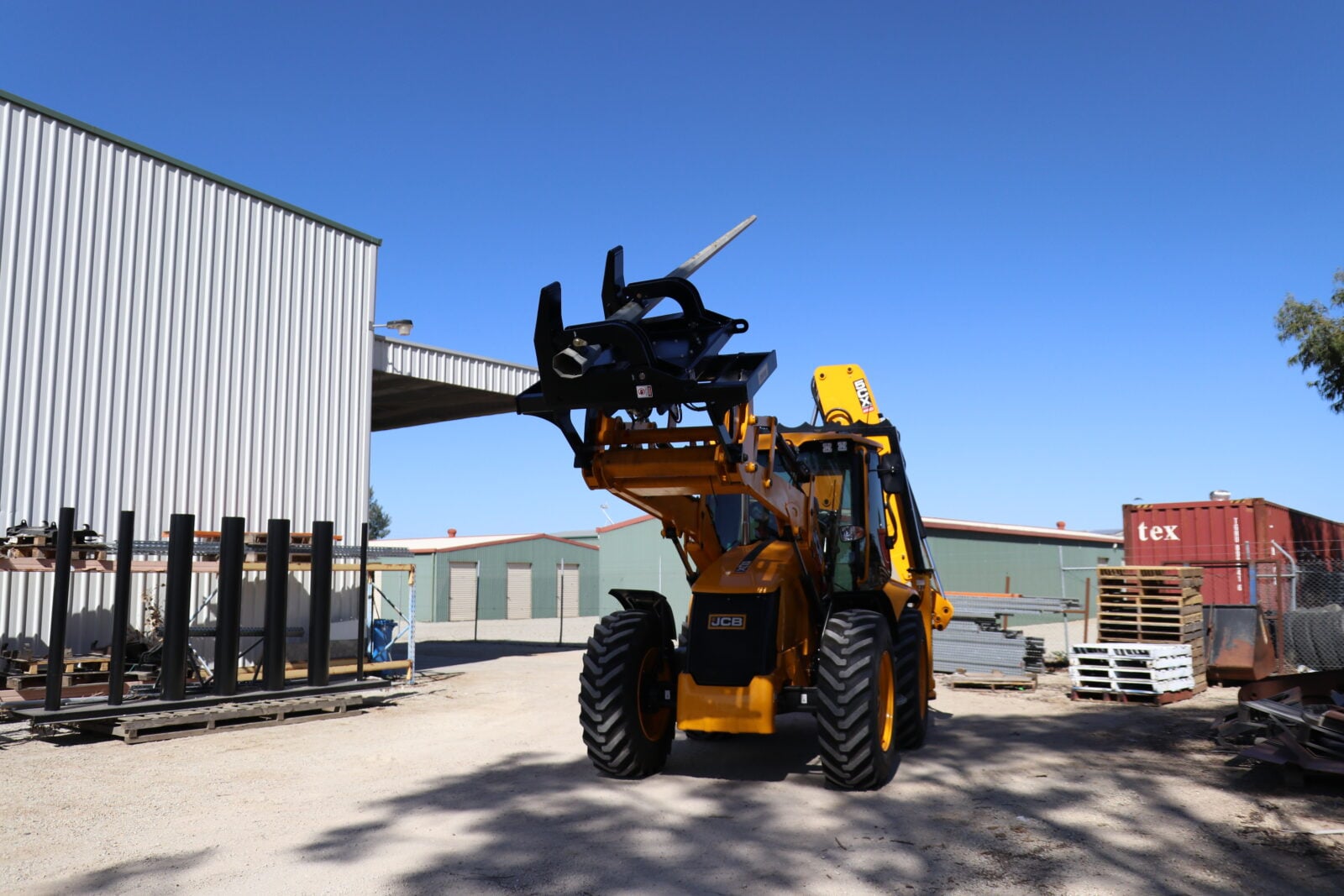

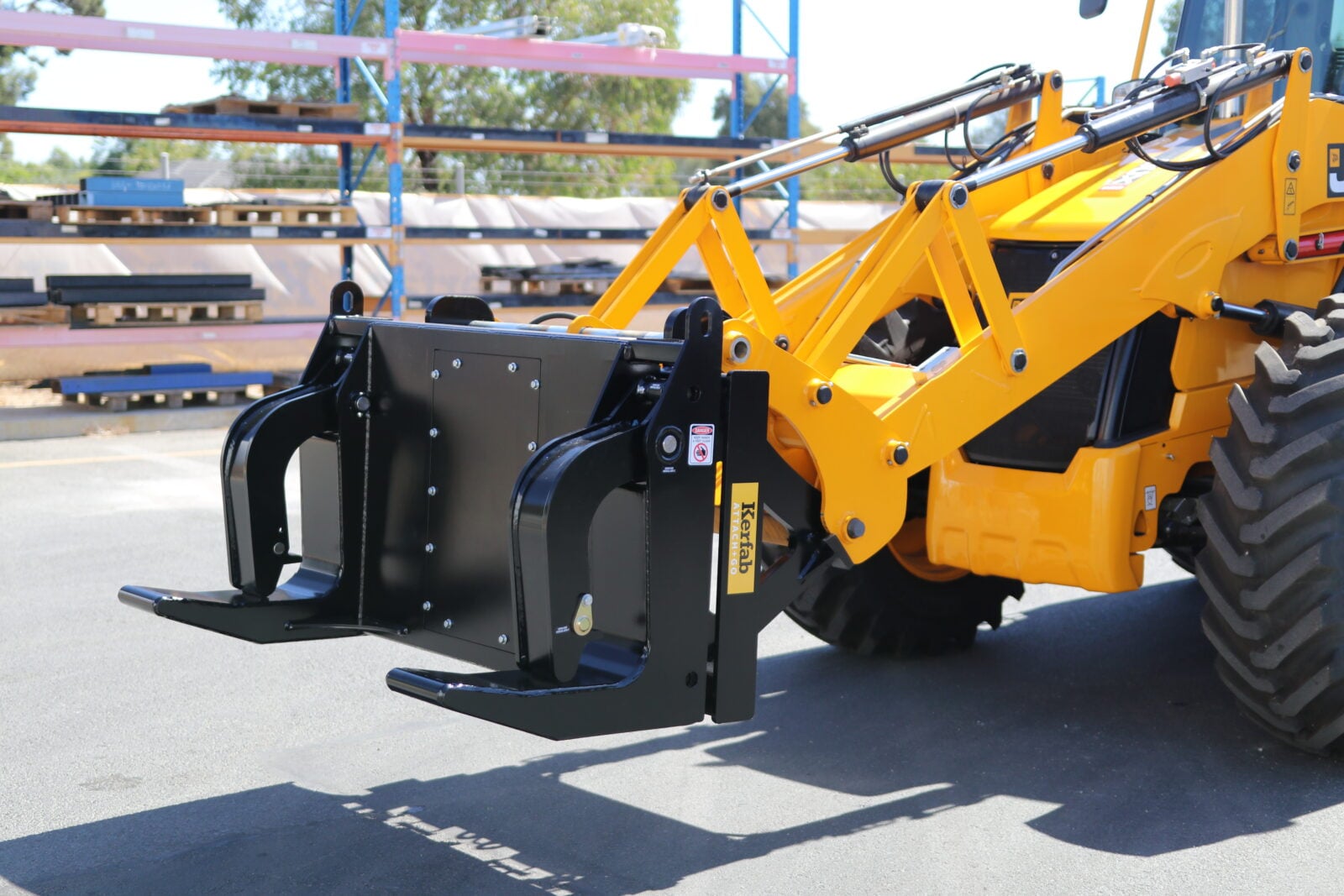

Short Tine Pole Grab

Short tine pole grab for precise handling and placement of power poles

Handling concrete and timber power poles requires precise control during lifting and placement, especially when working in tight yards or aligning poles for installation. Longer attachments can reduce accuracy and make it harder to position loads cleanly. A short tine pole grab allows operators to grip and place poles with greater control and confidence. The Kerfab Short Tine Pole Grab is purpose-built for handling power poles in yard and site environments. A short tine configuration improves positioning accuracy, while curved dual grab arms help gather and stabilise multiple poles into a controlled bundle. An open frame design supports clear visibility during operation, and hydraulic clamping provides a consistent holding force across the load.
pin-sort-svgrepo-com
Short tine design for accurate pole placement
icon bucket-svgrepo-com
Curved grab arms to bundle and stabilise multiple poles
Icon - Backframe
Open frame for improved visibility during operation
noun-hydraulic-cylinder-2421267
High-powered hydraulic cylinders for consistent clamping force
icon steel-claws-svgrepo-com
Customisable tine and grab lengths available
Icon - Warranty
Backed by a 2 year standard warranty + 2 year registered warranty

Designed for:

Handling concrete power poles
Handling timber poles
Unloading poles from trailers
Sorting pole stockpiles
Yard and site pole placement

Machine Compatibility

Telehandler
Bespoke

When requesting a quote, include your machine make and model so the correct hitch configuration can be recommended.

Performance Benefits

product-required
Improves placement accuracy
Short tine geometry allows operators to position poles more precisely, particularly in confined areas.
icon layers-svgrepo-com
Secures multiple poles during lifting
Curved grab arms help gather poles into a stable bundle, reducing movement during transport.
Icon - Visibility
Enhances operator visibility
Open frame design improves sightlines, making alignment and placement easier.
icon tools-solid-svgrepo-com
Maintains consistent clamping control
Hydraulic cylinders apply even pressure, helping hold poles securely without shifting.
Icon- ticks
Supports efficient pole handling workflow
Loading, sorting, and placement tasks can be completed more smoothly, reducing handling time.

Engineering design

See it in 3D

Dual cylinder clamping system

A dual cylinder and linkage arrangement delivers balanced clamping force across both grab arms, maintaining even pressure on the load.

Curved grab arm profile

The curved beak design draws poles inward during closing, helping form a stable bundle for lifting and transport.

Reinforced frame structure

Load forces are transferred through a reinforced frame, supporting stability during lifting and placement tasks.

Open frame visibility design

An open-back frame layout allows clear sightlines to the load, supporting more accurate positioning during operation.

Specifications

Part Number
Width mm
Capacity kg
TGR.ST1020
1080
2000
TGR.ST1040
1080
4000

See it in action

Play Video

Documents

Short Tine Pole Grab

Product Information Sheet

Icon - Operation Manual
Operation Manual
Refer to the Identification Plate on your grab for the specifications relevant to this attachment.

FAQ

What is a short tine pole grab used for?
A short tine pole grab is used to lift, move, and place concrete or timber power poles. It is commonly used in yards and site environments where accurate positioning is required.
Short tines improve control and positioning accuracy when placing poles. This is especially useful when working in tight areas or aligning poles for installation.
Yes. The curved grab arms are designed to gather multiple poles into a stable bundle. This allows them to be lifted and moved together more securely.

Get a Quote

Tell us your machine type, make and model, and the job the attachment will be used for.

Our team will confirm the correct configuration and provide a quote.

Most quotes are returned within one business day.




Our team will review your machine compatibility and respond with the correct attachment configuration and pricing.

Description

Handling concrete and timber power poles requires precise control during lifting and placement, especially when working in tight yards or aligning poles for installation. Longer attachments can reduce accuracy and make it harder to position loads cleanly. A short tine pole grab allows operators to grip and place poles with greater control and confidence.

The Kerfab Short Tine Pole Grab is purpose-built for handling power poles in yard and site environments. A short tine configuration improves positioning accuracy, while curved dual grab arms help gather and stabilise multiple poles into a controlled bundle. An open frame design supports clear visibility during operation, and hydraulic clamping provides a consistent holding force across the load.
