Tuskan Bale Clamp

Tuskan Bale Clamp

You’re climbing up the mixer wagon and leaning over blades spinning at top speed, about to cut the bale strings. Not only is this a dangerous task, its time consuming and messy. The Tuskan Bale Clamp is Australian designed, proven and made, making it the ideal solution to improving operations on any Aussie farm.

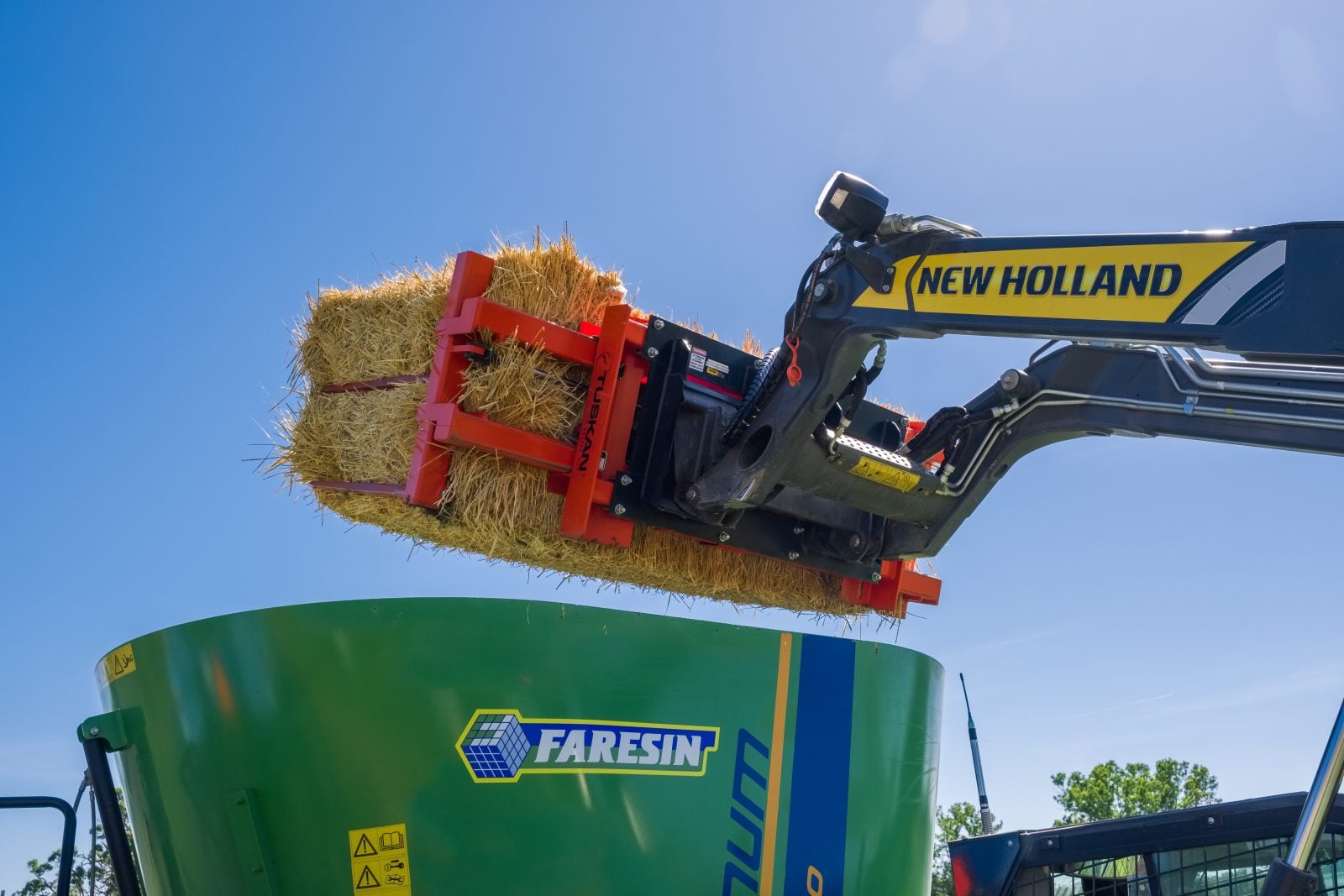

Its unique design allows the operator to clamp the bale, cut the strings while on the ground and then drop it into the mixer from the machine cab. While its clamped the bale holds its shape minimising the chance of dirt mixing in with the feed. With the Tuskan, you’ll save time, but more importantly, guarantee your safety. The clamping function can be used to efficiently complete various other tasks such as dropping bales over fences avoiding the need to go into each paddock separately.

The Tuskan Bale Clamp can also be used as a conventional hay fork to lift, stack and transport bales. Its quality-built frame enables it to withstand the rigours of day to day use on the farm. This combined with its versatility, makes it an excellent tool for any farm.

Read more

You’re climbing up the mixer wagon and leaning over blades spinning at top speed, about to cut the bale strings. Not only is this a dangerous task, its time consuming and messy. The Tuskan Bale Clamp is Australian designed, proven and made, making it the ideal solution to improving operations on any Aussie farm.

Its unique design allows the operator to clamp the bale, cut the strings while on the ground and then drop it into the mixer from the machine cab. While its clamped the bale holds its shape minimising the chance of dirt mixing in with the feed. With the Tuskan, you’ll save time, but more importantly, guarantee your safety. The clamping function can be used to efficiently complete various other tasks such as dropping bales over fences avoiding the need to go into each paddock separately.

The Tuskan Bale Clamp can also be used as a conventional hay fork to lift, stack and transport bales. Its quality-built frame enables it to withstand the rigours of day to day use on the farm. This combined with its versatility, makes it an excellent tool for any farm.

machine-tractor-vehicle-svgrepo-com
Four spikes laid out in a 2x2 formation increases stability when transporting material.
gear-wheel-svgrepo-com
Has the ability to handle square and round bales, silage, wool bales, tyre’s and wrapped bales.

Benefits of Tuskan Bale Clamp

scale-screen
Any Size
The Tuskan has an opening width of 900mm to 2750mm allowing it to handle bales of any size.
geometry
Any Shape
Using the clamping function, you can handle round and square bales with ease.
file-text-svgrepo-com
Any Type
Slide on Soft Hands (optional extra) are ideal for wool, wrapped and silage bales.
forklift-1-svgrepo-com
Any Hitch
Most hitch types can be fitted to the Tuskan to suit your machine, including Euro, Q-Fit, Manitou, Bobcat, Claas Scorpion, John Deere Quick Latch. Others available on request.

Container below this one is for inserting additional product panels - it will be hidden if no product panel is selected for the product in question

1
2
3
Increased stability

Fitted with four spikes laid out in a 2×2 formation for increased grip and stability when transporting material.

Has the ability to handle square and round bales, silage, wool bales, tyres and wrapped bales

Open and close the clamp from the comfort of your cab, saving time and effort, while also increasing operational safety.

View this product in 3D

Judul Baru

Standard Size

  • Available with 3, 4 or 5 tines based on the weight and size of your bales.
  • Has the option of a curved top frame for greater stability when handling multiple bales.
  • Optional Adjustable back frame ranging in heights from 1500mm to 2400mm.

Larger Size

  • Best suited to larger ag loaders and tractors
  • Has a greater capacity than the standard size and can carry up to two extra bales.
  • Various back frame heights from 1800mm to 3000mm.
  • Available with 2, 3, 4 or 5 tines depending on your requirements.
  • Depending on your application additional tines can be added to the top frame for extra security.

Specifications

Part Number
Number of Tines
Frame Width mm
Height With Apron mm
Height Without Apron mm
Weight kg
TUS250
4
1600
850
2170
390
