Extendable Lifting Jib

Extendable lifting jib for adjustable reach and precise load placement

Lifting loads beyond the reach of standard attachments often means working around obstacles or accessing tight spaces. Extendable lifting jib attachments allow operators to position loads further from the machine while maintaining control during lifting and placement.

The Kerfab Extendable Lifting Jib provides adjustable reach through manual or hydraulic extension, allowing the setup to match the task at hand. With options including a 3-stage configuration for lighter loads and a maximum reach of up to 3000 mm, it supports a wide range of lifting applications. A rated swivel hook allows the load to rotate during positioning, helping improve access and placement accuracy.

Kerfab also manufactures a fixed lifting jib and telehandler lifting jib.

Icon - Width
Extends up to 3000 mm reach
Icon - Compatible
Available in manual and hydraulic configurations
Icon - Adjustable
3-stage extension option for lighter loads
icon steel-svgrepo-com
Fitted with rated swivel hook for rotation
icon weight-svgrepo-com
Built from high tensile steel
Icon - Warranty
2 year standard warranty + 2 year registered warrranty
Get a Quote

Designed for:

Lifting bulky or oversized materials
Placing loads into hard-to-reach areas
Working over obstacles or into confined spaces
Handling items unsafe for manual lifting
General site lifting and material positioning

Machine Compatibility

Ag Loader
Wheel Loader
Bespoke

When requesting a quote, include your machine make and model so the correct hitch configuration can be recommended.

Get a Quote

Performance Benefits

icon steel-claws-svgrepo-com
Reach beyond standard forks
Extend the jib to place loads further from the machine. This is especially useful when working over obstacles or into tight spaces.
crane-lifting-weight-svgrepo-com (1)
More precise load positioning
Rotating hook allows the load to be aligned during lifting, reducing the need for manual adjustment on the ground.
product-required
Works across different machine setups
With both manual and hydraulic options available, the jib can be matched to different machines and operator preferences.
Icon - Operation Manual
Safer handling of difficult loads
Bulky or awkward items can be lifted without manual handling. This lowers risk when dealing with oversized materials.
icon gear-wheel-svgrepo-com
Less machine repositioning
Adjusting the jib length allows operators to reach the load directly, meaning fewer movements and more efficient workflow.

Engineering design

See it in 3D

Extendable boom design

The jib arm extends and retracts to suit the task, giving operators the ability to adjust reach without repositioning the machine.

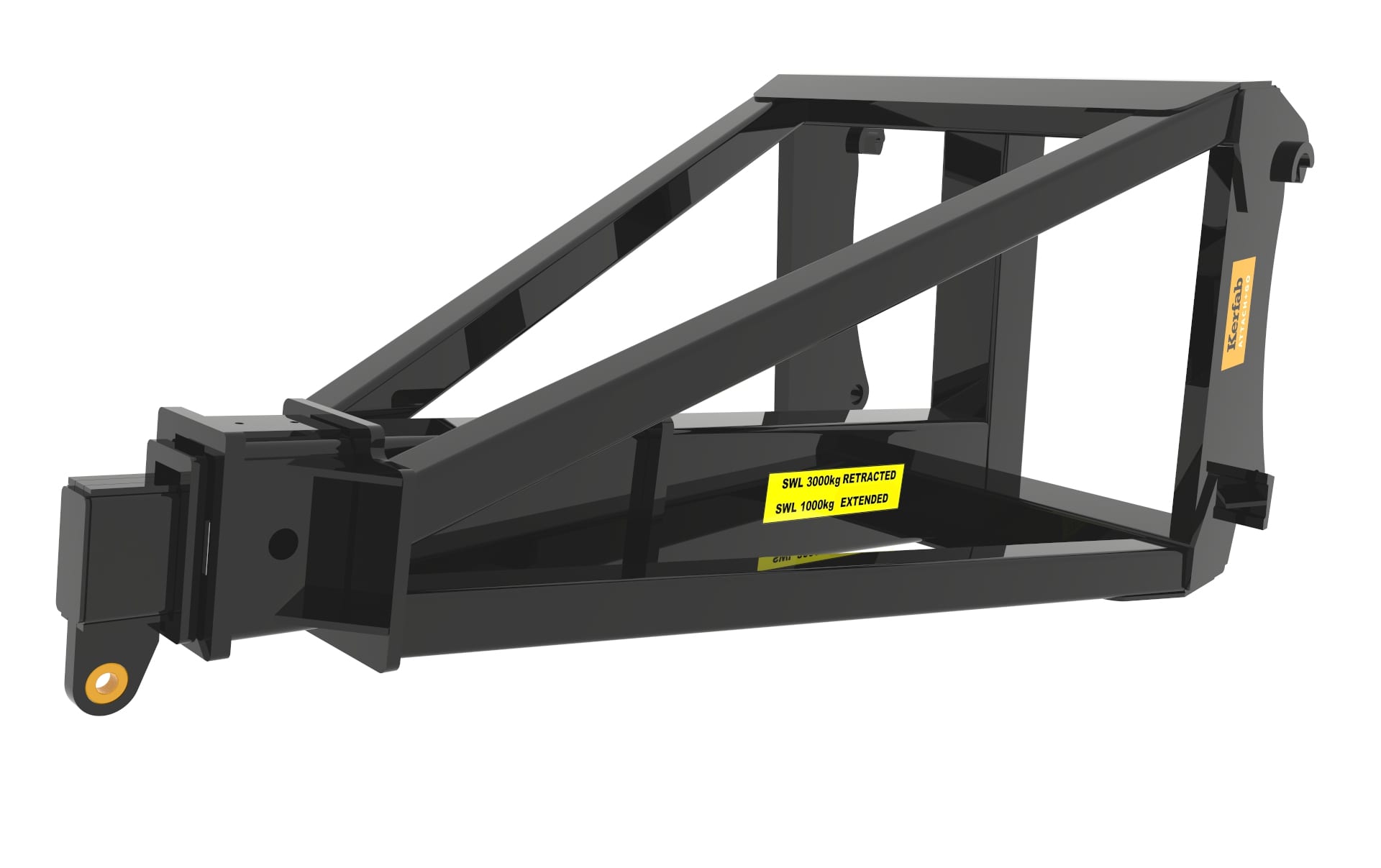

3-stage extension

For jobs that need additional reach, a 3-stage configuration is available. This setup is best suited to lighter loads where extension is prioritised.

High tensile steel frame

Built from high tensile steel, the frame is designed to handle a broad range of lifting demands across site conditions.

Rated swivel hook

A quality rated swivel hook is fitted as standard. It allows the load to rotate freely, improving access when positioning items.

Specifications

Part Number
Retracted Capacity kg
Extended Capacity kg
Extended Length mm
Retracted Length mm
WJI.EM3010
3000
1000
3000
1800
WJI.EM3020
5000
2000
3000
1800

Documents

Extendable Lifting Jib

Product Information Sheet

Download
Icon - Operation Manual
Operation Manual
Refer to the Identification Plate on the jib for the specifications relevant to this attachment.
Download

FAQ

What is an extendable lifting jib used for?
An extendable lifting jib is used to lift and position loads beyond the reach of standard attachments like pallet forks. It is commonly used for handling oversized or awkward items and placing them into areas that are difficult to access.
A 3-stage jib is used when additional reach is required beyond standard extension ranges. This setup is typically suited to lighter loads, where extended reach is more important than maximum lifting capacity.
Yes. When fitting a lifting jib to a loader, anti-drop or lock valves must be installed. In some cases, loader management systems and lift charts may also be required depending on site and machine requirements.
