Fixed Lifting Jib

Fixed lifting jib for controlled and consistent load lifting

Lifting heavy or awkward loads requires a secure connection point and consistent control during placement. Fixed lifting jib attachments are suited to tasks where reach does not need to change and a stable lifting position is preferred.

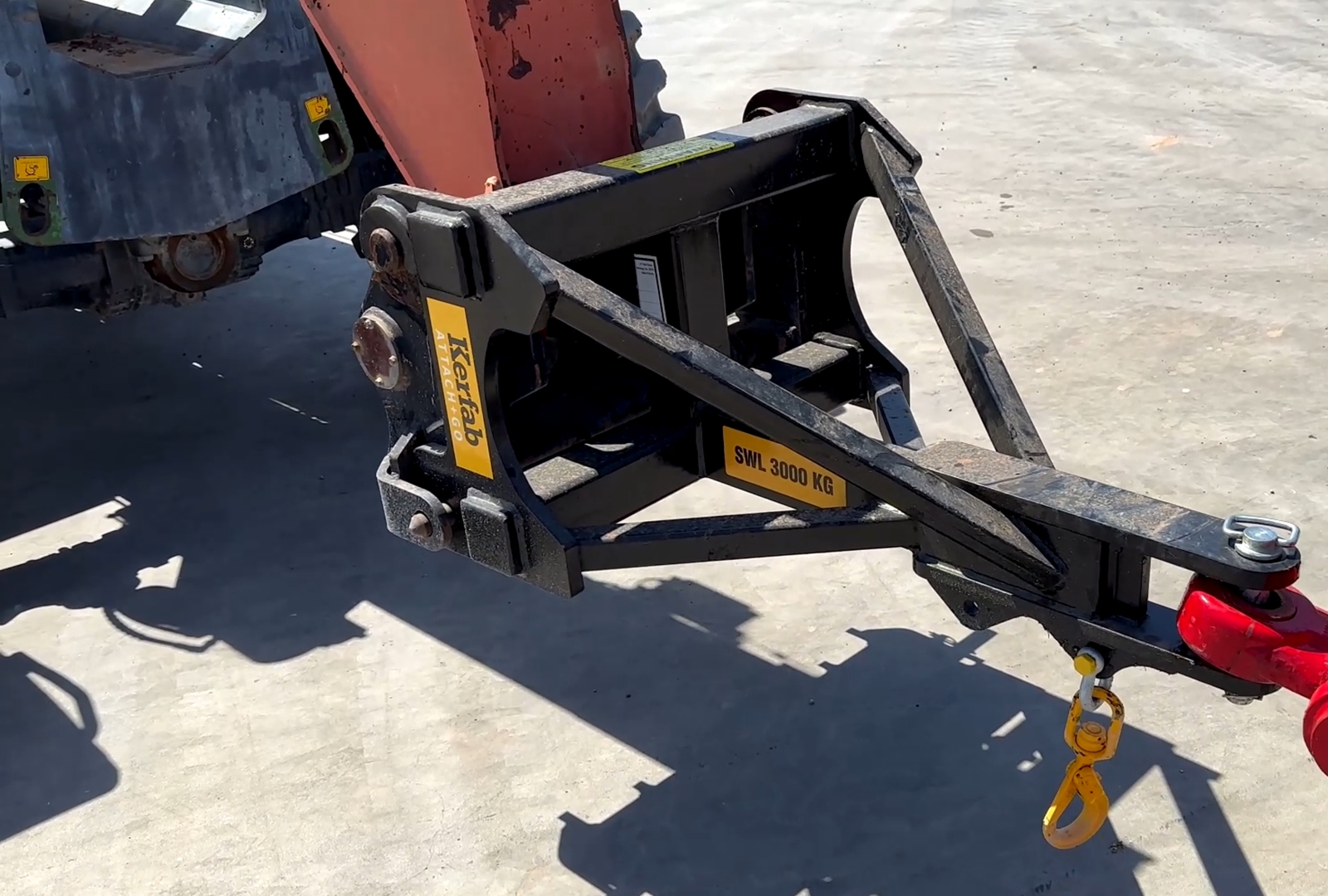

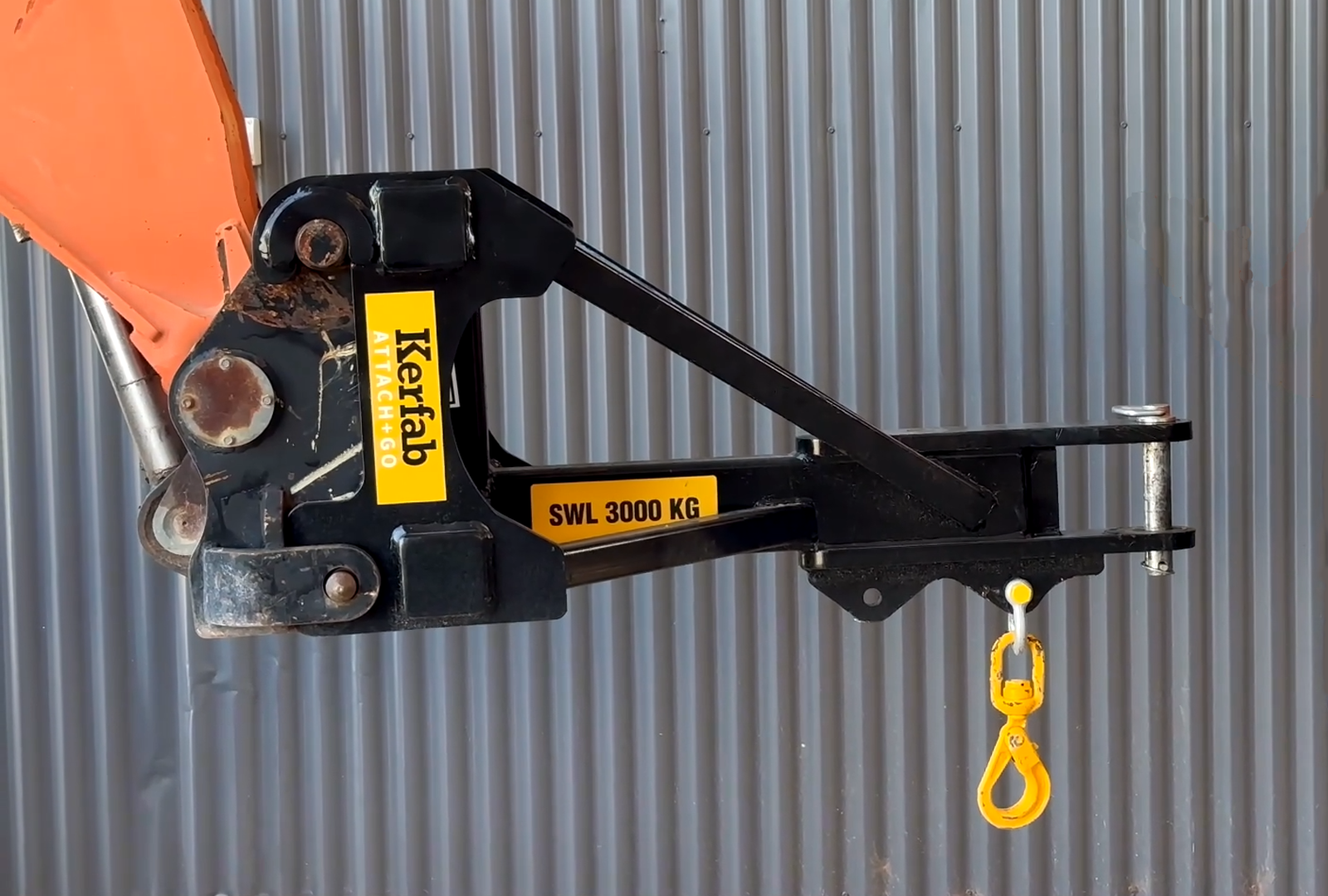

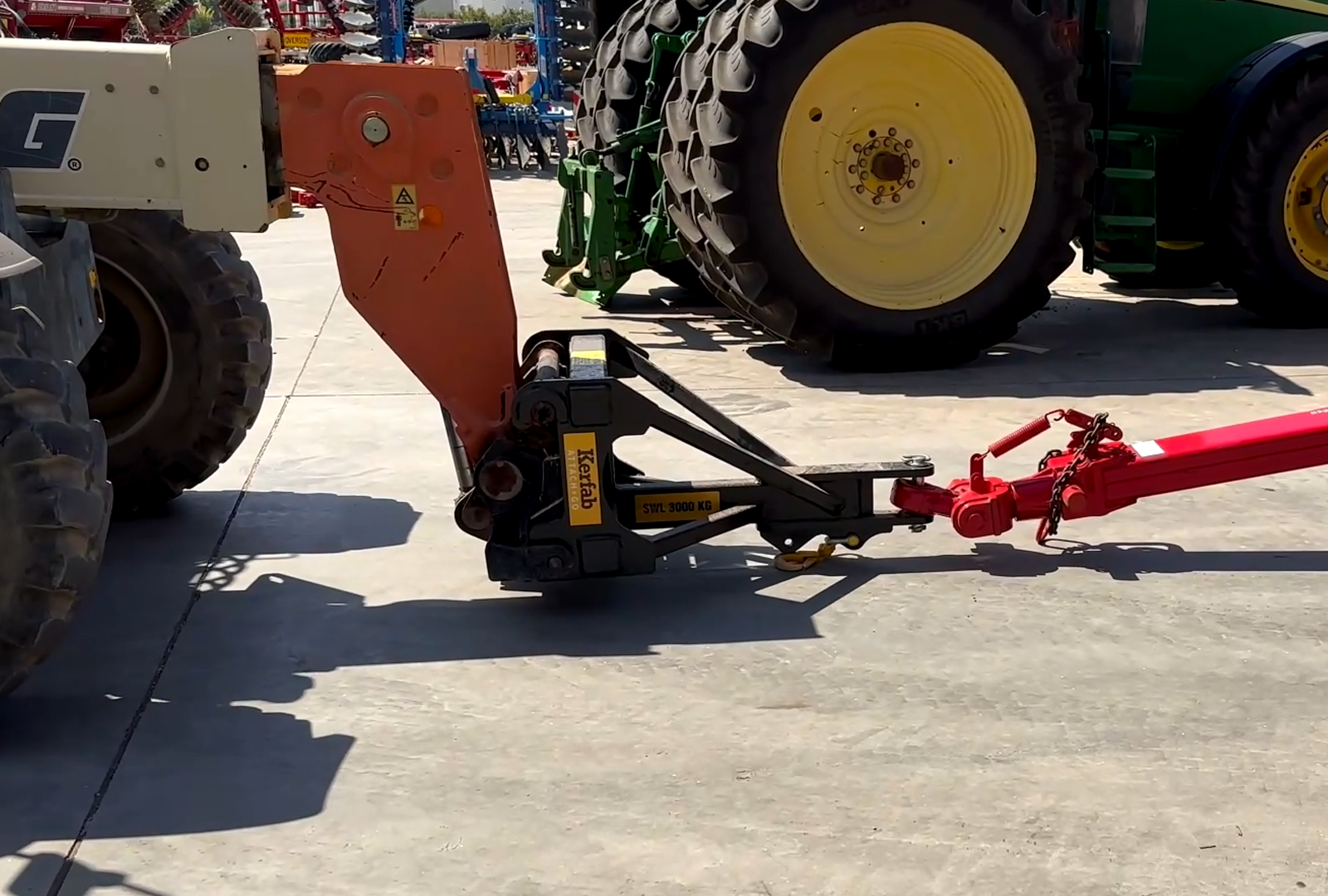

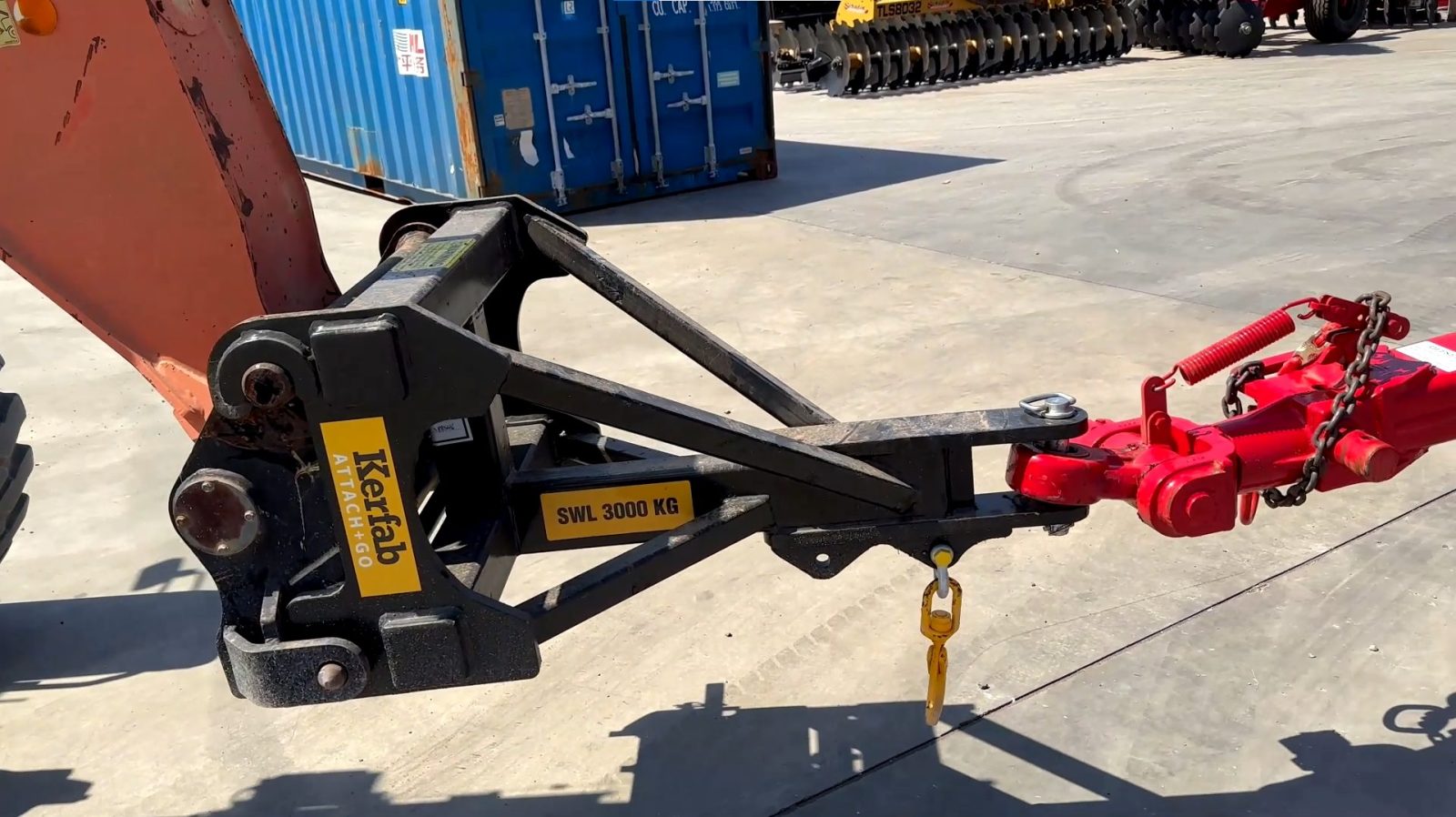

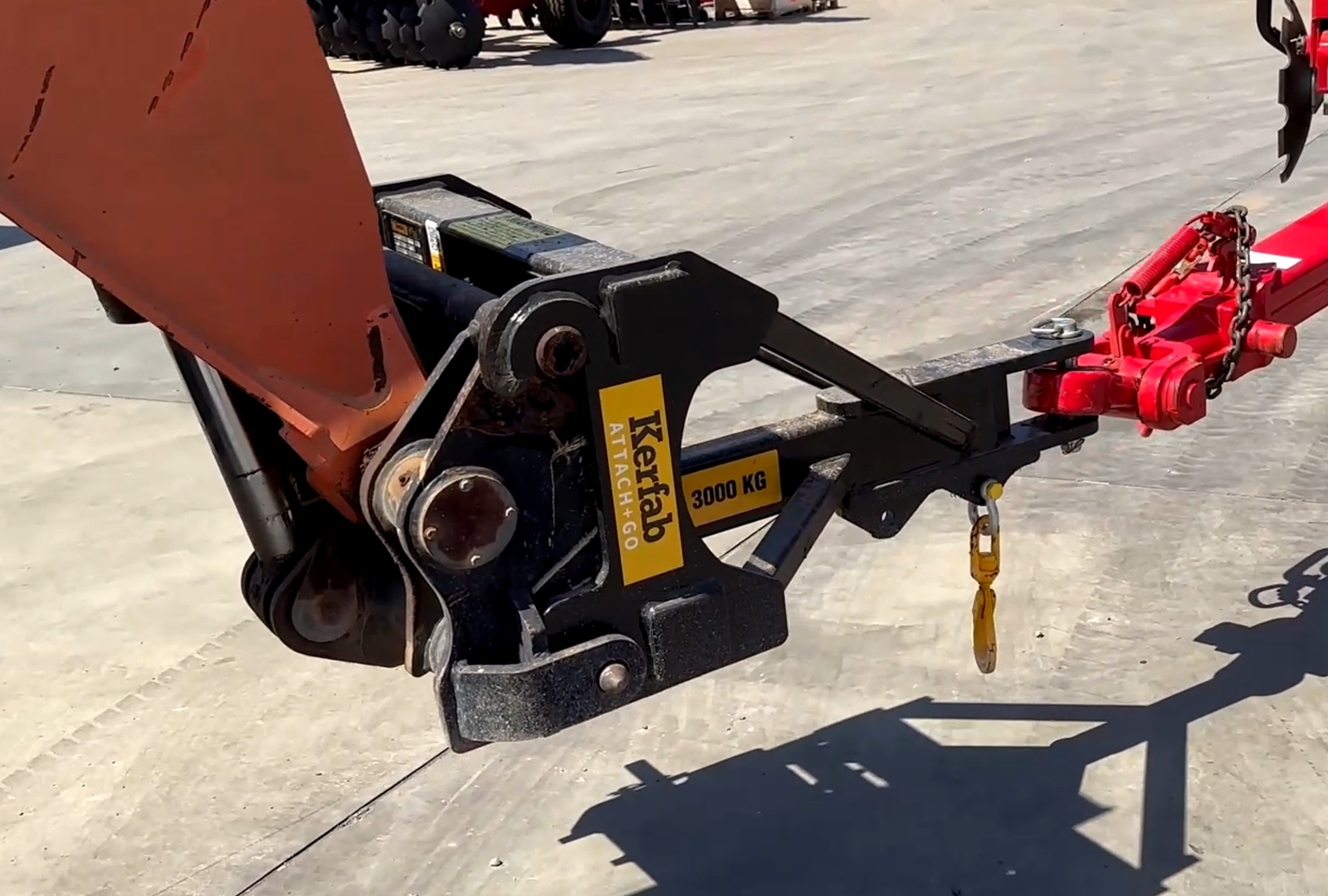

The Kerfab Fixed Lifting Jib provides a rigid lifting point for handling suspended loads such as structural steel, plant, and equipment. With a fixed length design, the lifting position remains consistent across repeated tasks, while the rated swivel hook allows loads to rotate during placement. Built from high tensile steel and available in multiple capacity options, it supports controlled lifting across a range of site applications.

Kerfab also manufactures an extendable lifting jib and telehandler lifting jib.

Capacity range from 1500 kg to 5000 kg

Standard lengths of 1500 mm or 1800 mm

Fitted with rated swivel hook for rotation

Built from high tensile steel

Meets Australian Standard 1418.8

Backed by a 2 year standard warranty + 2 year registered warranty

Designed for:

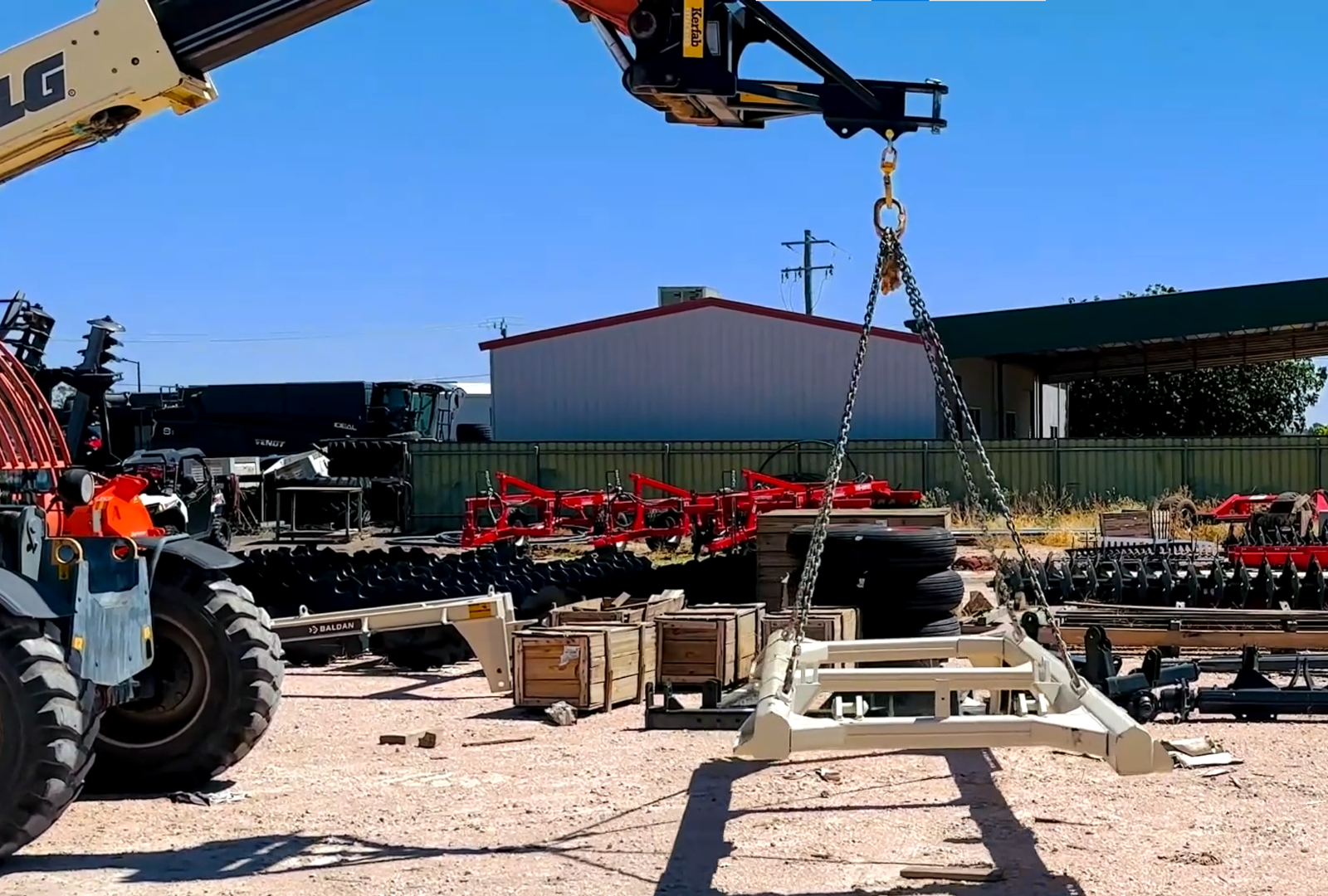

Lifting structural steel for construction

Moving plant and equipment on site

Handling bulky or unusually shaped loads

Placing loads into areas not accessible with pallet forks

General lifting tasks where fixed reach is sufficient

Machine Compatibility

When requesting a quote, include your machine make and model so the correct hitch configuration can be recommended.

Performance Benefits

Handles heavier lifting tasks

Lifting structural steel, plant, or equipment requires capacity you can rely on. With options up to 5000 kg, the jib supports these heavier loads without pushing into unsafe manual handling.

Access beyond fork limitations

Standard forks can’t always reach where the load sits. The jib extends your working range forward, making it easier to lift from behind obstacles or out of tight positions.

Greater control when positioning loads

The swivel hook allows the load to rotate as it’s lifted. Operators can align items mid-air rather than repositioning them on the ground.

Straightforward to operate on site

No hydraulics, no extension setup—just a fixed lifting point ready to use. This keeps operation simple, especially for repeat lifting tasks.

Consistent results across repeated lifts

When the boom length doesn’t change, neither does your lifting position. That consistency helps when placing similar loads throughout the day.

Engineering design

See it in 3D

Fixed boom structure

The jib uses a rigid boom with no extension. This keeps the lifting point consistent across every lift.

High tensile steel construction

Manufactured from high tensile steel to handle a wide range of loads. The structure supports strength under lifting conditions.

Rated swivel hook

A quality rated swivel hook is fitted to the jib. This allows the load to rotate during lifting and positioning.

Specifications

Part Number	Capacity kg	Length mm
WJI.LI1515	1500	1500
WJI.LI1520	2000	1500
WJI.LI1525	2500	1500
WJI.LI1530	3000	1500
WJI.LI1840	4000	1500
WJI.LI1850	5000	1500

See it in action

Play Video

Documents

Fixed Lifting Jib

Product Information Sheet

Operation Manual

Refer to the Identification Plate on the jib for the specifications relevant to this attachment.

Download

FAQ

What is a fixed lifting jib used for?

A fixed lifting jib is used to lift and move suspended loads that exceed safe manual handling limits. It is commonly used for structural steel, plant, equipment, and other bulky materials that require controlled lifting.

What capacity options are available for a fixed lifting jib?

This jib is available in a range of capacities from 1500 kg up to 5000 kg. The correct option depends on the type of loads being handled and your machine’s lifting capability.

Do I need additional safety equipment to use a fixed lifting jib?

Yes. When attaching a lifting jib to a loader, anti-drop or lock valves must be fitted. In some cases, loader management systems and lift charts may also be required depending on your setup.

Get a Quote

Tell us your machine type, make and model, and the job the attachment will be used for.

Our team will confirm the correct configuration and provide a quote.

Most quotes are returned within one business day.

Our team will review your machine compatibility and respond with the correct attachment configuration and pricing.
